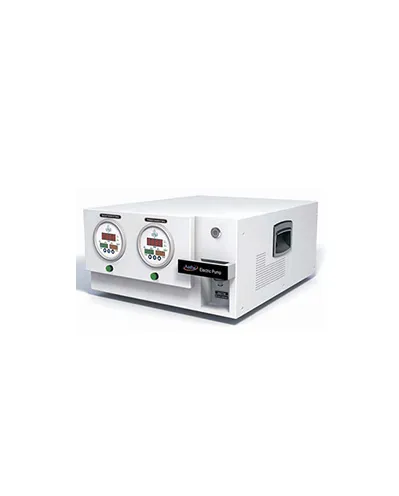

Electric Pump and Booster - Additel 780-1K-EPUMP

Category :
Pressure Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

ADT780-1K-EPUMP air pressure source uses electric driven pump to generate positive pressure and vacuum pressure. It can generate -13.5 psi (-0.95 bar ) vacuum and 1080 psi (75 bar ) pressure. with two independent control and ressure generation systems, vacuum and pressure can run simultaneously. this system supplies a steady and reliable air source for Additel 780 Pressure Controller.

Pressure Range :
Vacuum : -0.95 Bar to 75 Bar, @ the local atmosphere is 0.1 MPa.
Pressure is displayed in absolute pressure. The conversion between absolute pressure and vacuum is: Vacuum value= local atmosphere value-Set absolute pressure value.
Pressure : 0MPa to 7MPa (pressure is displayed in gauge pressure).
Vacuum Pressure Limit : User-selectable low and high set point limits. Vacuum will be generated unit the vacuum pressure is in between the low and high set point value and then remain in a standby state.
Positive Pressure Limit : User-selectable low and high set point limits. Pressure will be generated unit the pressure is in between the low and high set point values and then remain in a standby state.
Media : Air
Suction flow : 9L/min
Power supply : 100 to 250V, 50/60 Hz
Outlet port : G1/8F
Storage temperature : -20 to 70 degree C
Dimensions : 21.7" x 17.3" x 9.3" LWH (550 x 440 x 235mm)
Weight : 31.6 kg
