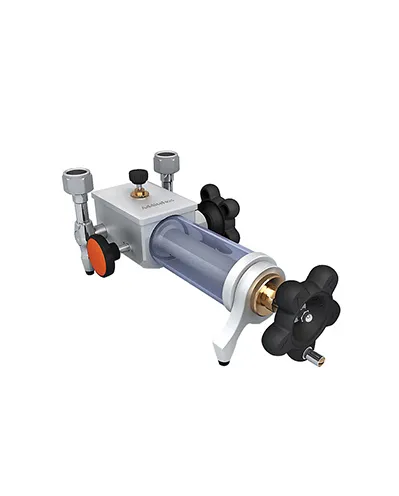

Handheld Hydraulic Pressure Test Pump – Additel 925

Category :
Pressure Calibrator

Price :

Rp.54.800.000

Chat Us

DESCRIPTION
SPECIFICATION

The 925 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 6,000psi (400bar). With the patented screw press technology, the high pressure can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the 925 avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.

Generated Pressure Range : 85% vacuum to 6,000 psi (400 bar) positive pressure
Adjusment Resolution : 10 Pa (0.1 mbar/0.0015 psi)
Media : Oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically)
Material :
Ram/adapters : SS
Body : SS/aluminum
Seals : Buna-N
Connection : Hand-tight connectors for both test gauge and reference gauge
Test Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions :
Height: 4.72" (120 mm)
Base: 9.84" (250 mm) x 5.51" (140 mm)
Weight : 3.7 lb (1.7 kg)
