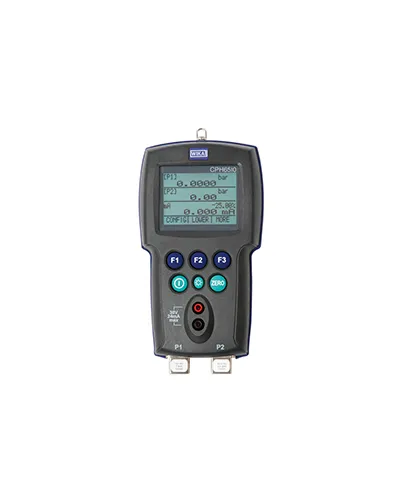

Handheld Pressure Calibrator - WIKA CPH6510IS

Category :
Pressure Calibrator

Price :

Rp.63.800.000

Chat Us

DESCRIPTION
SPECIFICATION

The model CPH65I0 can have up to two different reference pressure sensors integrated within it. These reference pressure sensors are fixed into the housing. The pressure connection is found on the bottom of the calibrator. With up to two reference pressure sensors integrated into the CPH65I0, combined with current input, pressure switch function and a resistance thermometer, the CPH65I0 enables the calibration of practically any pressure instrument. The additional ATEX approval expands the possible applications of this calibrator into hazardous areas. The CPH65I0 offers an accuracy of up to 0.025 % of the span in 24 pressure measuring ranges. The measurements can be displayed in one of 16 standard units.

Measuring ranges : 0 .. 25 mbar up to... 700 bar (also vacuum, absolute and differential pressure ranges available)
Accuracy to 0.025 % (incl. calibration certificate)
Intrinsically safe : sion Ex ia IIB T3
Measurement : 4 ..20 mA
Accurate temperature measurement with Pt100 resistance thermometer
Type of pressure : lative pressure, absolute pressure, vacuum and differential pressure
Pressure connection : NPT female (incl. adapter 1/8 NPT male to G ½ B male)
Pressure medium : l liquids and gases which are compatible with 316 SS stainless steel
Resolution : 5 digit
Current
Measuring range : 0.. 24 mA
Resolution : 1 μA
Accuracy : 015 % of measured value ±2 μA
Temperature
Measuring range : -40 … +150 °C
Resolution : 0.01 °C
Accuracy 0.015 % of measured value ±20 mΩ, or 0.2 °C for complete measuring chain (Pt100 resistance thermometer and CPH65I0)
