Hydraulic High Pressure Calibration Pump – Additel 937

Category :
Pressure Calibrator

Price :

Rp.109.200.000

Chat Us

DESCRIPTION
SPECIFICATION

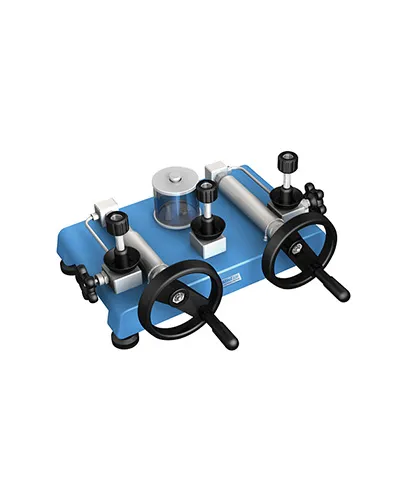

The 937 Hydraulic High Pressure Calibration Pump is a hand operated pressure pump designed for calibrating pressure measuring instruments with phosphoric acid ester fluid and Skydrol oil in the range from 85% vacuum to 15,000 psi (1000bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no check valve (non-returning valve), the 937 avoids the troublesome leakage issues that is usually experienced with hand pumps and allows for minimal maintenance.

Generated Pressure Range : 85% vacuum to 15,000 psi (1.000 bar) positive pressure
Adjusment Resolution : -
Media : Oil, compatible to phosphoric acid ester fluid and Skydrol Oil
Material :
Ram/adapters : SS
Body : SS/aluminum
Seals : Buna-N
Connection : Hand-tight connectors for both test gauge and reference gauge
Test Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions :
Height: 9.1" (230 mm)
Base: 20.5" (520 mm) x 14.2" (360 mm)
Weight : 35,2 lb (16 kg)
