Hydraulic Pressure Test Pump – Additel 927

Category :
Pressure Calibrator

Price :

Rp.55.800.000

Chat Us

DESCRIPTION
SPECIFICATION

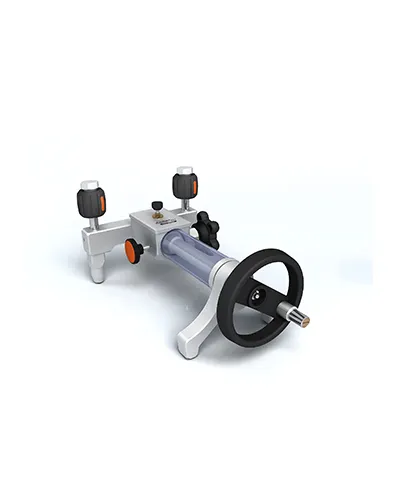

The 927 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 85% vacuum to 10,000 psi (700bar). With the patented screw press technology, high pressures can be easily generated, as well as increased and decreased smoothly. With no check valve (non-returning valve), the 927 avoids the troublesome leakage issues that is usually experienced with most hand pumps and allows for minimal maintenance. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.

Generated Pressure Range : 85% vacuum to 10,000 psi (700 bar) positive pressure
Adjusment Resolution : 10 Pa (0.1 mbar/0.0015 psi)
Media : Oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically)
Material :
Ram/adapters : SS
Body : SS/aluminum
Seals : Buna-N
Connection : Hand-tight connectors for both test gauge and reference gauge
Test Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions :
Height : 5.31" (135 mm)
Base : 11.42" (290 mm) x 7.80" (198 mm)
Weight : 7 lb (3.2 kg)
