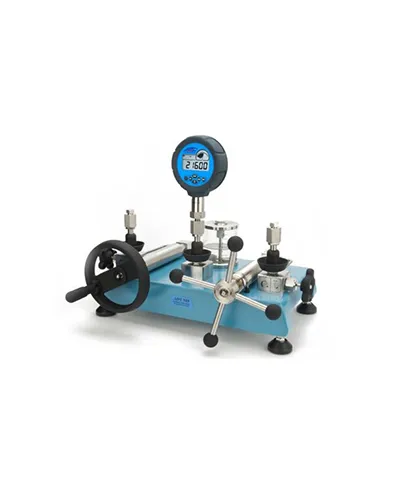

Hydraulic Ultra High Pressure Test Pump – Additel 949

Category :
Pressure Calibrator

Price :

Rp.146.300.000

Chat Us

DESCRIPTION
SPECIFICATION

The 949 Hydraulic Ultra-high Pressure Test Pump is a hand operated pressure pump designed to generate pressure up to 40,000 psi (2,800 bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased smoothly. A specially designed shut-off valve makes the pressure as stable as possible during calibration. With no non-returning valve, the 949 avoids the troublesome leakage issues that is usually experienced with hand pumps and allows for minimal maintenance.

Generated Pressure Range : 85% vacuum to 40,000 psi (2,800 bar) positive pressure
Adjusment Resolution : -
Media : Deionized water
Material :
Ram/adapters : SS
Body : SS/aluminum
Seals : Buna-N
Connection :
Test Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female
Reference Gauge Connection: Positional Autoclave F-250-C, 9/16" - 18 UNF female
1/2BSP female and M20X1.5 female connections are available upon request.
Dimensions :
Height: 9.1" (230 mm)
Base: 20.5" (520 mm) x 14.2" (360 mm)
Weight : 35,2 lb (16 kg)
