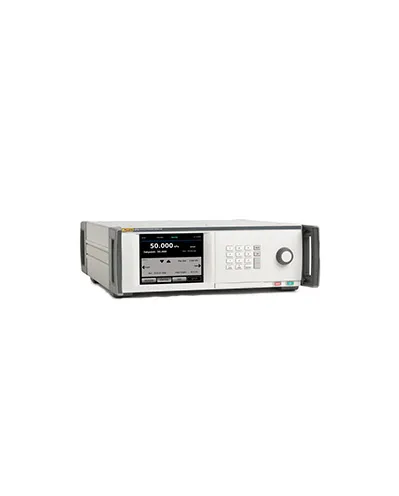

Modular Pressure Controller - Fluke 8370A

Category :
Pressure Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The 8370A is automated pneumatic high-pressure controllers that calibrate a wide workload of pressure sensors, covering twice the pressure ranges at twice the speed of other high-pressure controllers. The 8370A is modular systems that can be configured with up to five measurement modules at the same time, so they can handle high pressure, low pressure, and everything in between. Three families of modules provide three levels of performance that let you set up a system matching your needs for accuracy and value

Range pressures : pressures from atmosphere to 107 MPa (15,500 psi). It can be configured with ranges as low as 700 kPa (100 psi)
Power requirements : 100 V ac to 240 V ac, 47 Hz to 63 Hz
Fuse : T3.15 A 250 V ac
Max power consumption : 100 W
Ingress protection : IEC 60529:IP20
Pressure limits :
Maximum : 48 MPa (7 000 psi) gauge / 110 MPa (16 000 psi) gauge
Minimum : 2 MPa (300 psi) gauge for 8270A and 8370A
Reference port : 150 kPa (22 psi) absolute
Safety : IEC 61010-1, Installation Category II, Pollution degree 2
Dimensions : 147 mm (5.78 in) x 452 mm (17.79 in) x 488 mm (19.2 in)
Weight (Chassis only) : 13 kg (28.5 lbs) / 15 kg (35.25 lbs)
