Pneumatic Pressure Test Pump – Additel 916

Category :
Pressure Calibrator

Price :

Rp.47.000.000

Chat Us

DESCRIPTION
SPECIFICATION

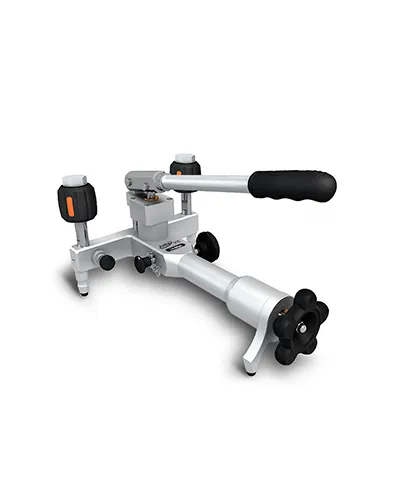

The 916 Pneumatic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from 95% vacuum to 600psi (40bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 10 Pa (0.1 mbar). A specially designed shut-off valve makes the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt to reduce the need for maintenance. The 916 is an ideal comparison test pump for pressure instruments calibration.

Generated Pressure Range : 95% vacuum to 600 psi (40 bar) positive pressure
Pressure Resolution : 10 Pa (0.1 mbar)
Media : Air
Material :
Ram/adapters : SS
Body : SS/aluminum
Seals : Buna-N
Connection : Hand-tight connectors for both test gauge and reference gauge
Test Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Reference Gauge Connection : 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions :
Height : 5.5" (140 mm)
Base : 12.4" (315 mm) x 7.8" (198 mm)
Weight : 5.9 lb (2.7 kg)
