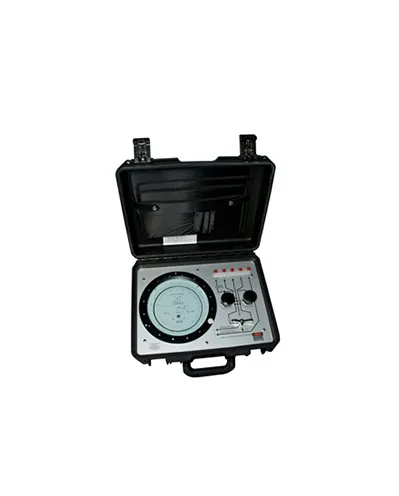

Portable Pneumatic Calibrator - WIKA 65-120

Category :
Pressure Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The Series 65-120 Pneumatic Calibrator provides highdegree accuracy for on-site testing and calibration service. This versatile portable test stand combines precision
measurement and durable construction in a compact unit that is capable of simulating, applying, holding, regulating and measuring both pressure and vacuum. The dial, all pressure connections, and the controls are panel-mounted for easy access.

Accuracy : 0.066% of full scale
Repeatability : 0.03% of full scale
Sensitivity : 0.01% of full scale
Hysteresis : 0.1% of full scale
Readability : 0.02% of full scale
Temperature effect : Maximum is 0.1% of full scale per 10°C / 50°F change from 23°C / 73.4°F
Scale length : 45 in. (1140 mm) through 2 pointer revolutions
Dial diameter : 8 ½ in. (215 mm)
Capsule system volume : 6.9 cc with pointer at zero; 8.6 cc, at full scale Overpressure protection : A pressure relief valve protects the mechanism (capsule); pressure up to 90 psi will not damage the mechanism nor affect accuracy. A built-in relief valve and a flow restrictor

Accessories : 6 adapters for ⅛” pipe thread to ¼” plastic tubing, 20 ft of ¼” OD plastic tubing, instruction book, sheet with summary of important instructions
