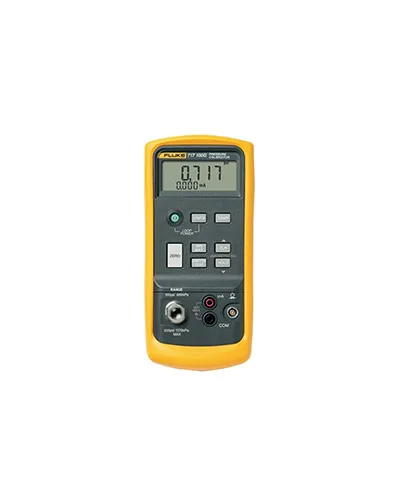

Portable Pressure Calibrator – Fluke 717-5000G

Category :
Pressure Calibrator

Price :

Rp.44.600.000

Chat Us

DESCRIPTION
SPECIFICATION

Fluke 717 Pressure Calibrator delivers outstanding performance, durability and reliability. The calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 750 Series Documenting Process Calibrators, the Fluke 717 Pressure Calibrator is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes. The Fluke 717 Pressure Calibrator is compatible with Fluke 700Pxx differential, gauge and absolute pressure modules to increase functionality

Measurement range : 0 to 5000 psi
Accuracy : 0.05% full scale
Resolution : 0.1 psi, 0.01 bar, 1 kPa
Over pressure : 2 x full scale
Current
Range : 0 to 24 mA (-25% to 125%)
Resolution : 0.001 mA
Accuracy : 0.015% + 2 counts
Loop power
Range : 24 V DC
Accuracy : ±10%
Operating temperature : -10°C to 55°C
Storage temperature : -40°C to 60°C
Display : Clear 5 digit LCD
Functions : Zero, min, max, hold, damp. Note gasses / liquids (non-corrosive)
Safety Specifications : CSA C22.2 No. 1010.11992
Battery type : Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Size (L x W x H) : 201 x 98 x 52 mm (7.93 x 3.86 x 2.06 in)
Weight : 22 oz, approximately 600 G with holster
