Portable Pressure Calibrator – Fluke 718-1G

Category :
Pressure Calibrator

Price :

Rp.62.400.000

Chat Us

DESCRIPTION
SPECIFICATION

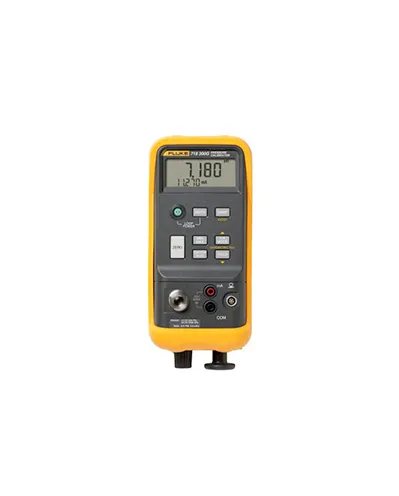

Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field

Measurement range : -1 psi to +1 psi
Accuracy : 0.025% full scale
Resolution : 0.0001 psi, 0.001 mbar, 0.0001 kPa
Over pressure : 5 x full scale
mA Measure
Range : 0 to 24 mA
Resolution : 0.001 mA
Accuracy : 0.015% + 1 count
Loop power
Range : 24 V DC
Accuracy : ±10%
Maximum voltage : 30 volts (non-operating)
Temperature : -40°C to 60°C
Operating temperature : -10°C to 55°C
Relative humidity : 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
Operating altitude : 3,000 M max
Shock : 1 M drop test
Vibration : Random, 2 g, 5 Hz – 500 Hz
Safety : CSA C22.2 No. 1010.1: 1992
EMC : EN50082-1: 1992 and EN55022: 1994 Class B
Power, battery life : 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
Battery life : 4 to 20 hours typical, depending on functions used
Display : LCD, 5 digit pressure and current simultaneous
Size : 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
Weight : 992 g (35 oz)
