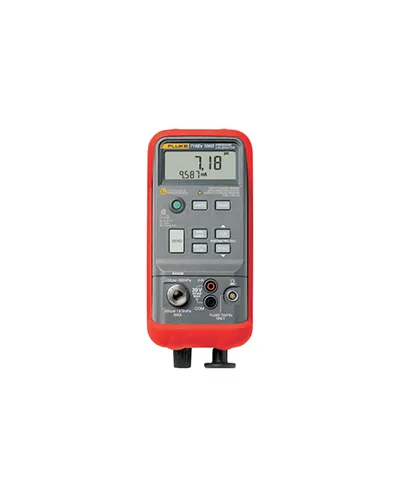

Portable Pressure Calibrator – Fluke 718Ex-30G

Category :
Pressure Calibrator

Price :

Rp.85.500.000

Chat Us

DESCRIPTION
SPECIFICATION

Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field

Measurement range : -12 psi to 30 psi
Accuracy : 0.05% FS
Resolution : 0.0001 bar
Over pressure : 3 x full scale
mA Measure
Range : 0 to 24 mA
Resolution : 0.001 mA
Accuracy : 0.015% + 1 count
Loop power
Range : 24 V DC
Accuracy : ±10%
Maximum voltage : 30 volts (non-operating)
Temperature : -40°C to 60°C
Operating temperature : -10°C to 55°C
Relative humidity : 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
Operating altitude : 3,000 M max
Shock : 1 M drop test
Vibration : Random, 2 g, 5 Hz – 500 Hz
Safety : CSA C22.2 No. 1010.1: 1992
EMC : EN50082-1: 1992 and EN55022: 1994 Class B
Power, battery life : 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
Battery life : 4 to 20 hours typical, depending on functions used
Display : LCD, 5 digit pressure and current simultaneous
Size : 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)
Weight : 992 g (35 oz)
