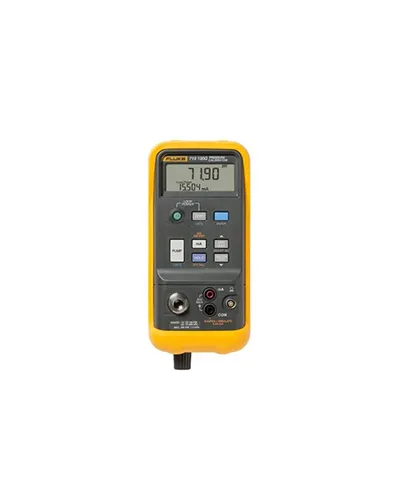

Portable Pressure Calibrator – Fluke 719-100G

Category :
Pressure Calibrator

Price :

Rp.79.700.000

Chat Us

DESCRIPTION
SPECIFICATION

Fluke 719 Electric Pressure Calibrator provides pressure calibration at your fingertips. Use the programmable pump limit settings to eliminate over-pressurization, and to set “pump to” pressure values. The unique cleanout port design reduces pump failures, and makes the 719 easy to clean without repair. The compact, lightweight form, combined with one-handed calibration, makes this pressure calibrator the ideal tool for busy process professionals. The Fluke 719 delivers pressure calibration made easy, by a name you know and trust for all your process calibration needs

Measurement range : -12 to 120 psi
Accuracy : 0.025% range for 6 months
Resolution : 0.01 psi, 1 mbar
mA Range : 0 to 24 mA
Resolution : 0.001 mA
Accuracy : 0.015% Rdg + 2 counts
Storage temperature : -30°C to 60°C
Operating temperature : -10°C to 55°C
Relative humidity : 95% (-10°C to 30°C)
Shock : 1 meter drop test
Safety : CSA C22.2 No. 1010.1:1992
EMC : EN50082-1:1992 and EN55022:1994 Class B
Pump Specifications
Maximum pressure generation : 120 psi (8 BAR) (100 psi model)
Pump to : 30 psi in less than 15 seconds, 100 psi in less than 45 seconds (with 1 meter of 1/8 inch test hose)
Pump cycles between rebuilds : 5000
Total pump life : 20,000 calibration cycle
Battery : Two 9 V alkaline batteries
Battery life : 12 hours with 12 mA into 500 Ω, 200 pump cycles to 100 psi, 500 pump cycles to 30 psi
Size (H x W x L) : 60 x 87 x 210 mm
Weight : 912 g (2 lb)
