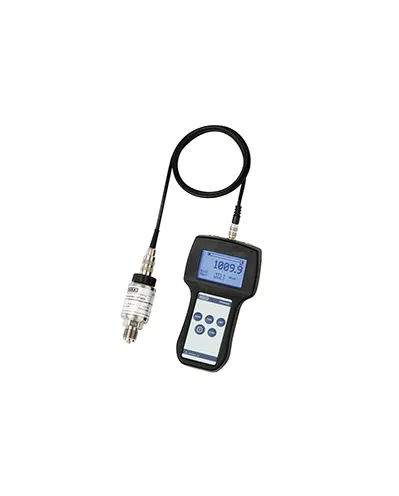

Precision Handheld Pressure Indicator - WIKA CPH6400

Category :
Pressure Calibrator

Price :

Rp.67.700.000

Chat Us

DESCRIPTION
SPECIFICATION

A wide variety of reference pressure sensors, offering various measuring ranges of up to 6,000 bar, are available to the operator, always ensuring a solution matched to the application. The individual sensors can be exchanged quickly and without tools (plug-and-play) and are automatically recognised by the digital indicator. Also, as an option, very accurate temperature measurement with a Pt100 resistance
thermometer is possible. In addition, this instrument features a large, easily-read display with backlighting (on/off selectable), a durable case and simple, clear operation.

Display : Large graphic display, with backlighting (on/off selectable)
Display resolution : up to 6 digits; selectable
Pressure units : bar, mbar, kPa, psi, mmHg, inHg and kg/cm² (depending on the measuring range, freely selectable)
Measuring rate (pressure) : 5 values/sec
Memory : Min/Max, integrated data logger
Functions via key press : Tare, change units
Menu functions : Min/Max memory, pressure rate, zero point adjustment for overpressure ranges, logger (start/pause/stop)
Data logger : Cyclic logger: automatic recording of up to 1,000 pressure values (for 2-channel version: 500 pressure values and 500 temperature values) Cycle time: selectable from 1 ... 3600 seconds
