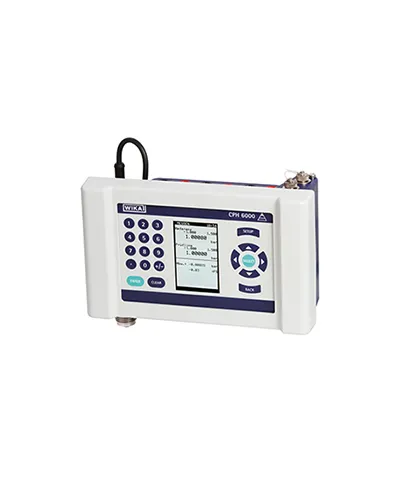

Pressure Calibrator - WIKA CPH6000

Category :
Pressure Calibrator

Price :

Rp.92.500.000

Chat Us

DESCRIPTION
SPECIFICATION

In order to provide an optimal solution for each application, a wide variety of pressure sensors are available. With an accuracy of 0.025% and pressure ranges up to 6,000 bar, all are quickly and easily interchangeable without the need for
additional tools. In addition to being mounted on the instrument, the pressure sensor can also be mounted remotely using an extension cable (approximately 1 m long). If the pressure sensor is changed, the instrument automatically recognises the new measuring range and thus the operator does not need to reconfigure it manually

Type of pressure : {In addition to the above-specified pressures; vacuum, bi-directional ranges and absolute pressures are available}; {bi-directional ranges (±): minimum span 500 mbar, e.g. -250 mbar ... +250 mbar}
Pressure units : 15 standard units and one freely programmable unit; see page 4, menu structure
Digital instrument with easily interchangeable reference pressure sensors (sensor can also be attached externally)
Measuring ranges from 0 ... 250 mbar to 0 ... 6.000 bar
Accuracy: 0.025 % (incl. calibration certificate)
Calibration and pressure-switch test functions
PC software and complete service cases (incl. pumps) available
Display : Large TFT colour screen for the display of reference and test signals, and additional information
Display resolution : up to 6 digits; selectable
Measuring rate (pressure) : 2 values/sec
