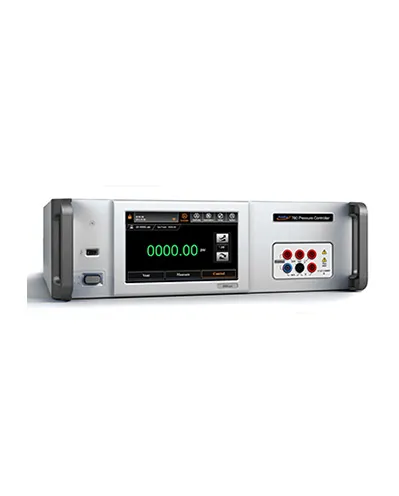

Pressure Controller – Additel ADT780-1K

Category :
Pressure Calibrator

Price :

Rp.348.000.000

Chat Us

DESCRIPTION
SPECIFICATION

Additel 780 series controller incorporates the same durability, accuracy, and quality into a new bench top controller packed with features and functionality that is remarkably easy to use. The Additel 780 series offers two base ranges: to 1,000 psi (70 bar) and to 3,000 psi (200 bar). The base range establishes the maximum controlling range of the controller. Each configuration includes a control sensor which is preselected to the sensor range best suited for your application. External and internal sensors can be used which allows for expanded range and accuracy capability in the future

Pressure range : -14.5 to 1,000 psi (-0.95 to 70 bar)
Control stability : 0.003% FS (stability based on % FS of control sensor range)
Media : Clean gas
Over-range indication : 103% to 120% (based on sensor)
Resolution : 4, 5, 6, or 7 digits (user selectable)
Pressure type : Gauge, Absolute
Warm up time : 15 minutes
Measurement units : Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable
Minimum control pressure : 0.0001 psi
Power : 100 to 240V, 50/60 Hz
Pressure ports : G1/8 F
Storage temperature : -20°C to 70°C
Operating environment : 0-90% RH non-condensing
Vibration : 1G 10Hz~500Hz
Communications : RS232,USB,LAN,WIFI
Stability indicator : User selectable
Operating modes : Control, measure, and vent
Language : English, Chinese (simplified), German, Spanish, French, Italian, Portuguese, Russian, Japanese
Display : 7 inch (17.8 cm) color, touch screen display
Weight : 33 lbs (15 kg)
