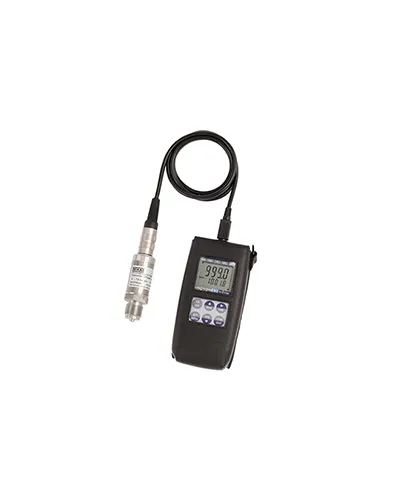

Pressure Indicator - WIKA CPH6210 IS

Category :
Pressure Calibrator

Price :

Rp.66.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The CPH62I0 can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version CPH62I0-S2, and two connected model CPT62I0 reference pressure sensors. Selectable pressure units here are bar, mbar, psi, Pa, kPa, MPa, mmHg or inHg. An integrated data logger and various other functions such as Min, Max, Hold, Tare, zero point adjustment, alarm, poweroff, peak value detection (1,000 measurements/s), average value filter, etc. ensure that the CPH62I0 can be used for many different applications.

Types of pressure : Relative pressure, {absolute pressure from 0 ... 25 bar abs. and vacuum measuring ranges from -1 ... +24 bar}, differential pressure only with CPH62I0-S2 and two connected model CPT62I0 reference pressure sensors
Resolution : dependent on pressure range (max. 4 1/2-digit)
Accuracy of the measuring chain : 0.2 % FS (resolution 4-digit); {optional: 0.1 % FS (resolution: 4 1/2-digit)}
Sensor compatibility : Compatible with model CPT62I0 reference pressure sensors
Display : Large 4 1/2-digit LCD display for indication of 2 pressure values and additional information
Indication range : -19999 ... 19999 digits, depending on sensor used
Pressure units : mbar, bar, Pa, kPa, MPa, mmHg, inHg and psi (depending on the measuring range, freely selectable)
Measuring rate : 4/s (“slow”); 1,000/s (“fast”); > 1,000/s unfiltered (peak value detection), selectable
