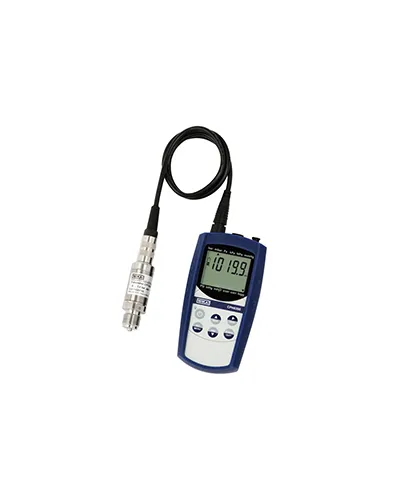

Pressure Indicator - WIKA CPH6300

Category :
Pressure Calibrator

Price :

Rp.67.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The CPH6300 can be used for measuring both gauge and absolute pressure. Differential pressure measurement is possible with the 2-channel version CPH6300-S2, and two model CPT6200 reference pressure sensors possible. The selectable pressure units are bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O and one customer-specific unit. An integrated data logger and various other functions such as Min, Max, Hold, Tare, zero-point adjustment, Alarm, Power-Off, peak value detection (up to 1,000 measurements/s), average value filter etc. ensure that the CPH6300 can be used for many different applications. The large, backlit display and also a long battery life complete the features of the CPH6300.

Types of pressure : Relative pressure, {absolute pressure from 0 ... 25 bar abs. (0 ... 360 psi abs.) and vacuum from -1 ... +24 bar (-14.5 ... 550 psi)} Ddifferential pressure measuring only with CPH6300-S2 and two model CPT6200 reference pressure sensors connected possible
Accuracy of the measuring chain : 0.2 % FS (resolution 4-digit); {optional: 0.1 % FS (resolution 4 1/2-digit)}
Resolution : dependant on pressure range (max. 4 1/2-digit)
Sensor compatibility : Compatible with model CPT6200 reference pressure sensors
Screen : Large 4 1/2-digit LCD screen with backlighting, for the display of two pressure values and additional information Indication range : -19999 ... 19999 digits, depending on sensors used
Pressure units : bar, mbar, psi, Pa, kPa, MPa, mmHg, inHg, mH2O and a customer-specific unit, pre-set to kg/ cm² (depending on the measuring range, selectable)
Measuring rate : 4/s (“slow”); 1,000/s (“fast”); > 1,000/s unfiltered (peak value detection), selectable
