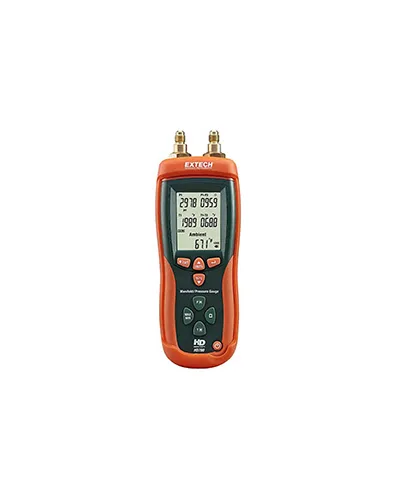

Extech’s Heavy duty Digital Manifold/Pressure Gauge simultaneously measures suction line or liquid line pressure and line temperature to calculate and display superheat and sub cooling for A/C units. It also has dual inputs measuring differential pressure (P1-P2) and Type K temperature (T1-T2). For use with R22 and R410A refrigerants. Included are heavy duty connection hoses, Type K Temperature Clamp probe, and bead wire Temperature probe
Range (Max Resolution) : -14 to 500psi Basic Accuracy : ±1psi Resolution : 0.1 psi Temperature (Type K) : -76°F to 999.9°F (-60°C to 537.0°C) Temperature resolution : 0.1°F/°C Temperature (Ambient - NTC) : 32.0°F to 122.0°F (0°C to 50.0°C) Maximum Overload Pressure : 800psi Dimensions : 8.3 x 3.1 x 2" (212 x 78 x 51mm) Weight : 11.9oz (338g)
Extech 407910 is a Differential Pressure Manometer that measures to 29psi and displays results in 8 units of measure. Features include: zero function for offset measurements, Min/Max, Data Hold and Auto power off. Includes 2 quick-disconnect fittings, 9V battery, protective holster with stand and case
Extech 407910 is a Differential Pressure Manometer that measures to 29psi and displays results in 8 units of measure. Features include: zero function for offset measurements, Min/Max, Data Hold and Auto power off. Includes 2 quick-disconnect fittings, 9V battery, protective holster with stand and case
The HD350 is a Pitot tube anemometer and differential manometer. Measures Differential pressure in 5 selectable units of measure and includes a Pitot tube and 2 connection hoses for measuring Air Velocity/Air Flow. Additional features include data hold, auto power off, zero function, plus manually record/recall up to 99 readings. Built-in USB port. Complete with software and USB cable, 9V battery, pitot tube with two 33.5 in. (85 cm) connection hoses, 100-240 Volt universal AC Adaptor and hard carrying case
