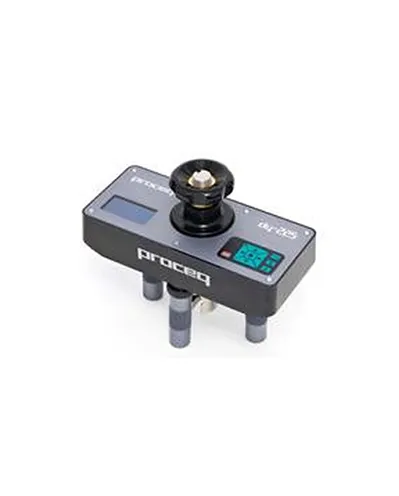

The quality of concrete repairs is determined by the adhesive strength between the repair material and the substrate. Pull-off testing is the most widely used test method to assess bond strength. The Proceq DY-2 family of automated pull-off testers covers the complete range of pull-off applications with unmatched ease of operation and the ability to store a complete record of the test
Working range : 1.3 to 12.7 MPa (185 to 1847 psi) Tensile force (50 mm test disc) : 2.5 to 25 kN (562 to 5620 Ibf) Maximum stroke : 5 mm Maximum pulling speed : 2.2 mm/min (0.086 inch/min) PC software : DY-2 Link with live view of actual load rate graph Memory : 100 measurements Connections : USB to PC and for charging Calibration accuracy : EN ISO 7500-1 Class 2 (±1 % from 20 % of maximum force) Battery capacity : 1500 mAh, 3.7V (min. 80 measurements) Weight : 4.5 kg
