Rebar Detector – Proceq Profometer 600

Category :
Rebar and Corrosion Analyzer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

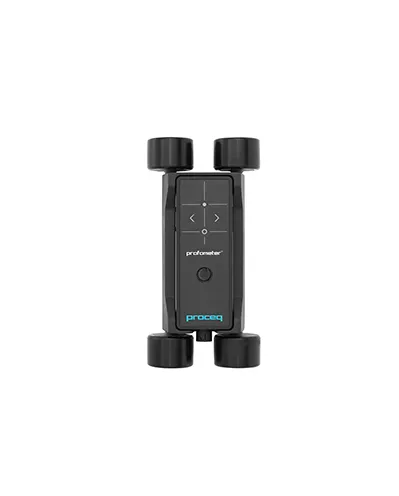

Rebar location is a central activity for anyone involved in on-site testing of reinforced structures. Locating rebars is a necessity when drilling, cutting coring as well as a preliminary operation required for most other non-destructive investigations. Advanced cover meter based on the new generation Profometer touchscreen allowing full data review directly on the instrument. Lightweigth IP 67 universal probe with detachable scan cart and spot functionality for measurements where space is limited

Cover measuring range : Up to 185 mm
Cover measuring accuracy : ± 1 to 4 mm, depending on cover
Path measuring accuracy on smooth surface : 0.5 to 1.0 % of measured length
Diameter measuring range : Up to 63 mm
Diameter measuring accuracy : ± 1 rebar size
Instrument firmware : 1-Layer Neighboring Rebar Correction (NRC)
PC software : Profometer Link to download saved data to a PC for analysis and export to third party applications

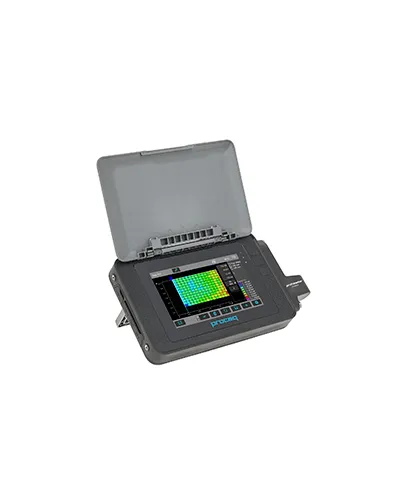

Display : 7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor
Memory : Internal 8 GB flash memory
Connections : USB host / device and Ethernet
Measurement modes : Rebar location, diameter estimation and cover measurement
Dimensions : 250 x 162 x 62 mm
Weight (of display device) : About 1525 g (incl. battery)
