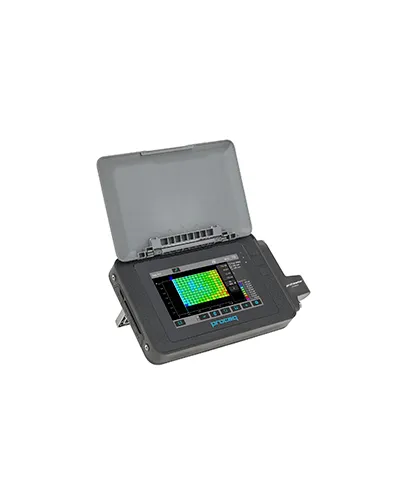

Rebar Detector – Proceq Profometer 650AI

Category :
Rebar and Corrosion Analyzer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

Rebar location is a central activity for anyone involved in on-site testing of reinforced structures. Locating rebars is a necessity when drilling, cutting coring as well as a preliminary operation required for most other non-destructive investigations. Other typical applications include conformity check of new buildings, investigations on unknown structures and corrosion analysis. Dedicated functionalities for mapping concrete cover and for reporting one layer rebar arrangements

Cover measuring range : Up to 185 mm
Cover measuring accuracy : ± 1 to 4 mm, depending on cover
Path measuring accuracy on smooth surface : 0.5 to 1.0 % of measured length
Diameter measuring range : Up to 63 mm
Diameter measuring accuracy : ± 1 rebar size
Available upgrades : To profometer corrosion
Instrument firmware : 2-Layer Neighboring Rebar Correction Artificial Intelligence (NRC AI)
PC software : Profometer Link to download saved data to a PC for analysis and export to third party applications
Display : 7” color rugged touchscreen unit (800 x 480 pixels) with dual core processor
Memory : Internal 8 GB flash memory
Connections : USB host / device and Ethernet
Measurement modes : Rebar location, diameter estimation and cover measurement
Dimensions : 250 x 162 x 62 mm
Weight (of display device) : About 1525 g (incl. battery)
