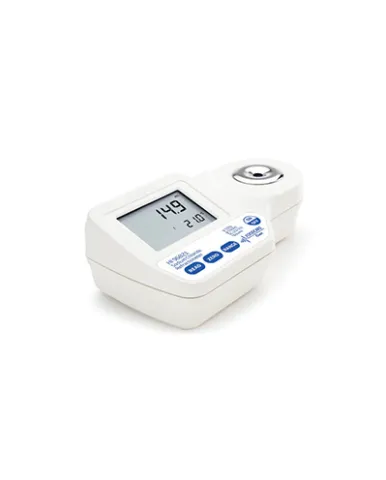

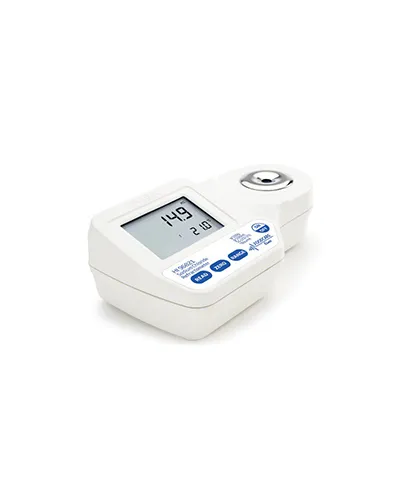

The Hi96821 portable refractometer converts the refractive index of a food sample to g/100 g, g/100 mL, specific gravity and °Baume. These conversions are based on internationally recognized references for unit conversion. The Hi96821 is ideal for the analysis of salad dressings, cheeses, condiments, canned and jarred foods, soups, brines and whey. The Hi96821 is an easy to use tool for measuring sodium chloride in foods, whether on the production line or in the lab
Specific Gravity Range : 1.000 to 1.216 Specific Gravity Specific Gravity Resolution : 0.001 Specific Gravity Specific Gravity Accuracy : ±0.002 Specific Gravity Sodium Chloride Range : 0 to 28 g/100 g; 0 to 34 g/100 mL; 0 to 26 °Baume Sodium Chloride Resolution : 0.1 g/100 g; 0.1 g/100 mL; 0.1 °Baume Sodium Chloride Accuracy : ±0.2 g/100 g; ±0.2 g/100 mL; ±0.2 °Baume Temperature Range : 0 to 80°C (32 to 176°F) Temperature Resolution : 0.1°C (0.1°F) Temperature Accuracy : ±0.3 °C (±0.5 °F) Temperature Compensation : automatic between 0 and 40°C (32 to 104°F) Automatic Shut-Off : after three minutes of inactivity Battery Type/Life : 9V / approximately 5000 readings Refractometer Light Source : yellow LED Minimum Sample Volume : 100 μL (to cover prism totally) Sample Cell : stainless steel ring and flint glass prism Measurement Time : approximately 1.5 seconds Ordering Information : HI96821 is supplied with battery and instruction manual Notes : Enclosure Rating: IP65 Dimensions : 192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) Weight : 420 g (14.8 oz.)
The Hi96811 Digital Wine Refractometer converts the refractive index of a wine, juice or must sample to % Brix. This conversion is based on the tables found in the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis) that documents the changes in refractive index with temperature for a percent by weight sucrose solution. Since the majority of sugar in grape juice and must is fructose and glucose instead of sucrose, the reading is sometimes referred to as “Apparent Brix”. Typical grapes at harvest will be between 19-24% Brix or degrees Brix (°Bx). The Hi96811 is an easy-to-use tool for winemakers for measuring sugar in grapes or must, in the field or in the lab
The Hi96813 Digital Wine Refractometer converts the refractive index of the sample to sucrose concentration in units of percent by weight, % Brix (also referred to as °Brix). The conversion used is based on the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Since the majority of sugar in grape juice is fructose and glucose and not sucrose, the reading is sometimes referred to as “Apparent Brix”
The Hi96814 Digital Wine Refractometer converts the refractive index of wine juice or must to sucrose concentration in units of percent by weight, % Brix (also referred to as °Brix). The conversion used is based on the ICUMSA Methods Book (International Commission for Uniform Methods of Sugar Analysis). Since the majority of sugar in grape juice is fructose and glucose and not sucrose, the reading is sometimes referred to as “Apparent Brix”
