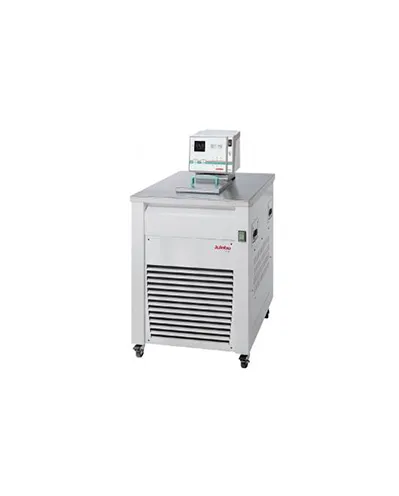

JULABO Ultra-Low Refrigerated Circulators for heating and cooling. The units are suitable for external temperature applications with simultaneous operation in the bath tank. The units provide particularly high heating and cooling capacities for rapid heat-up and cool-down times even for large volume, external systems. The units offer an improved insulation to prevent ice-formation and have a filling level display. Typical applications: Temperature applications to jacketed reaction vessels, autoclaves, miniplant installations, kilo labs, freezing point determination, calibration at low temperatures, petroleum testing, etc
Order No. : 9 312 681.33 Working temperature range : -81 ... +100 °C Temperature stability : ±0.02 °C Setting the resolution of the temperature display : 0.01 °C Temperature display resolution : 0.01 °C Ambient temperature : +5.0 ... +40.0 °C Filling volume : 5 ... 6.5 l Pump connections : M16x1 male Cooling Water Connection : G¾ in Bath cover : integrated Cooling of compressor : 2-stage Air Digital interface : Profibus optional External pt100 sensor connection : integrated Integrated programmer : 6x60 steps Temperature control : ICC Absolute temperature calibration : 3 Point Calibration Temperature displayTemperature display : VFD Temperature settingTemperature setting : Keypad Dimensions (W × L × H) :19.7 x 22.8 x 35 in. Weight : 194 lbs
