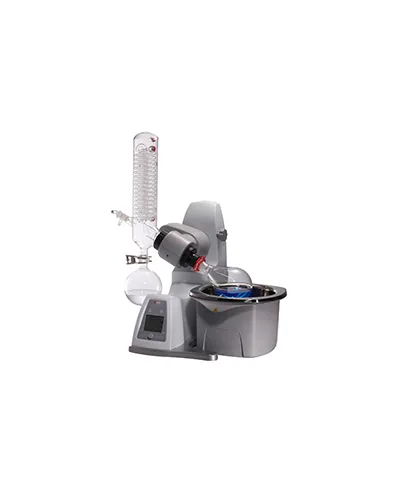

LCD Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It offers an excellent distilling solution in a wide range of applications, Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes. Boil-dry protection, automatically power off if heating without water/oil in the heating bath, Patented condenser (cooling surface 1700cm²) with excellent cooling effect. Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process , Optional glassware with explosion proof film available. Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
Evaporating Flask Volume : 50 - 2000mL Evaporation capacity (H2O) : 1.56L/h Automatic lifting : YES Display : LCD (temperature/speed/clockwise and Anti-clockwise/time) Motor Type : Brushless DC motor Speed Range : 20-280rpm Clockwise and Anti-clockwise : Yes Heating Temperature Range : Room temp to 180°C Control Accuracy water : ±1℃ oil: ±3℃ Heating Power : 1300W Stroke Displacement : automatic 150mm Time Setting Range : 1-999min Permissible Ambient Temperature : 5-40°C Permissible Relative Humidity : 80%RH Protection Class : IP20 USB Interface : Yes
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
