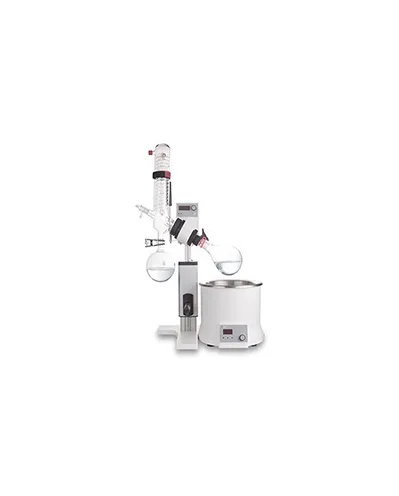

LED Digital Rotary Evaporator is a basic chemical laboratory instrument suitable for evaporation, distillation and separation of chemicals. It can be used as a multifunctional system in combination with vacuum pump, vacuum controller and circulating refrigerators to provide excellent distillation solutions in many laboratory applications, Patented condenser (cooling surface 1200/1700cm² for selection), double helix condensing tube + center circular arc design to speed up the flow rate of liquid with excellent cooling effect, Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process. Ejection mechanism ensures easy exchange of evaporating flask, Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance, Remote function provides PC control and data transmission. Compatible with the entire range of RE100-Pro glassware , optional glassware with explosion proof film available
Evaporating Flask Volume : 50 - 2000mL Evaporation capacity (H2O) : 1.56L/h Automatic lifting : NO (Manual lifting) Display : LED (speed, temperature, time) Motor Type : Brushless DC motor Speed Range : 20-200rpm Clockwise and Anti-clockwise : Yes Heating Temperature Range : Room temp. to 180℃ Control Accuracy water : ±1℃ oil: ±3℃ Heating Power : 1200 W Stroke Displacement : Manual 110mm + auxiliary100mm Interval Time Setting Range : 1~999s Permissible Ambient Temperature : 5~40℃ Permissible Relative Humidity : 80%RH Protection Class : IP20 USB Interface Yes Voltage/Frequency : 100~120/200~240V 50/60 Hz Power 1245 W Heating Bath: 300x300x240mm Dimension [D×W×H] Main Unit: 440×320×450mm Weight : 12 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
