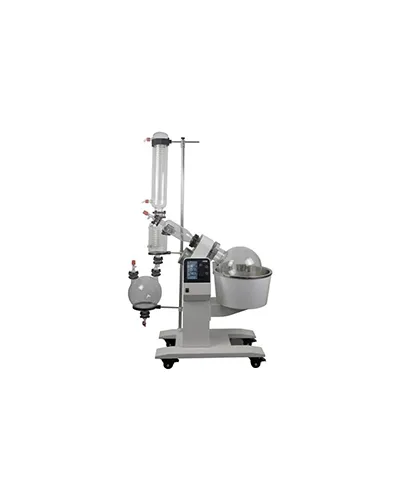

Large Scale LCD Digital Evaporator is mainly used for continuos distillation of a large number of volatile solvents under reduced pressure. It offers an excellent distilling solution in a wide range of applications, Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery. Speed range from 10 to 150 rpm and interval operation in clockwise and anticlockwise directions for drying process. A switching valve for continuous collection without compromising the system vacuum and solvent distillation, Patented PTFE double sealing ring with excellent sealing performance
Evaporating Flask Volume : 20L Evaporation capacity (H2O) : 4.0L/h Automatic lifting : YES Display : LCD (temperature/speed/clockwise and Anti-clockwise/time) Temperature Range : Room temp. ~180° C (both water and oil) Control Accuracy : Water: ±1o C Oil: ±3o C Rotation Speed : 10~150rpm Evaporation capacity : Max.4.0L/h (water vapor volume) Ultimate vacuum : Less 2.6hpa Temperature control method : Micro processer PID control Stroke Displacement : Automatic 180mm Safety features: Motor over-current protection, Residual Current Device, lifting overload protection, Boildry protection, over-temperature protection Sample flask : Round flask 20L Receiving flask : Round flask 10L with drain valve Condenser : Two-section vertical triple serpentine condenser, cooling surface 1.2m Heating bath size : φ450×240mm Takeover caliber : Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm Power supply : 220V/4600W/50/60Hz Dimension [D×W×H] : 1160mm×600mm×1860mm Weight : 25 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
