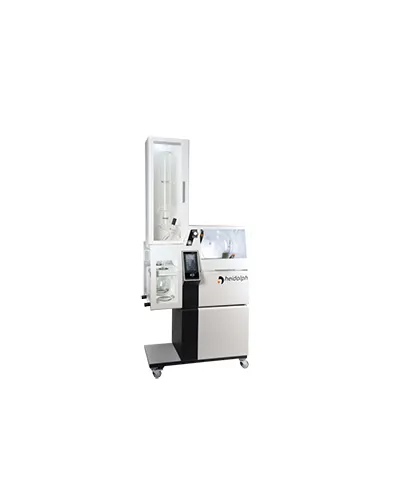

With the Hei-VAP Industrial series you are always on the safe side with the safety enclosure protecting you and your glassware! You can operate the Hei-VAP Industrial just by yourself, change flasks in seconds and operate the unit with ease. Units feature a large touch screen control panel with illuminated displays for all process parameters and programmable ramps. Universal heating bath accommodates water or other bath fluids allowing for tempearture setting up to 180°C (356°F)
Lift : motor lift Rotation speed range : 6 – 160 rpm Temp. range heating bath : 20 – 180 °C Bath temperature setting : digital Temperature accuracy : ±1 °C Heating capacity : 4,000 W Overheat cut-off protection : yes Display : 7" Touchpanel Integrated vacuum controller : 1 Timer : 1 Vacuum program SETpressure : 1 Vacuum program AUTOaccurate requires AUTOaccurate sensor : 1 Supply Power : 4,600 W Protection class DIN EN 60529 : IP 20 Max. condensing surface : 1.2 m² Display : 7" Touchpanel Weight without glassware assembly : approx. 120 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
