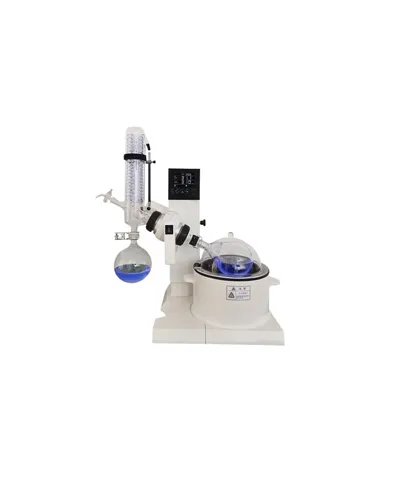

Rotary Evaporator - Drawell DW-ADQ Series Multi Manifold

Category :
Rotary Evaporator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.

Spesifikasi:
Model: DW-2000ADQ DW-3000ADQ DW-5000ADQ
Rotating Speed: LCD Screen; 0~310rpm/min LCD Screen; 0~200rpm/min
Evap. Capacity: Max.25ml/min (H2O) Max.27ml/min (H2O） Max.43ml/min (H2O）
Temp. range/precision: Microcomputer PID controller; Water Bath：RT.-99℃±0.5℃
Bath Material: Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast.
Bath Size: φ23×13cm φ26×15cm φ29×17cm
Positive&Negative Rotating: Intermittent positive and negative rotating function with timing function (0-60s) for drying process of powder samples.
Heater Power: 1.5KW 1.5KW 1.5KW
Flask Volume: 5*50ML(0.25–2L) 5*100ML (0.25–3L) 5*150ML(0.25–5L)
Sealing: Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property.
Condenser: Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency.
Condense Area; 0.18㎡ 0.21㎡ 0.31㎡
Environment Temp.: 5℃~40℃
Input: AC220V/50HZ
Size&Weight:
Pack Size 71×64.5×51cm/Product Size 66×42×83cm/G/W 30KG
Pack Size 71×64.5×79cm/ Product Size 70×43×86cm/G/W 35KG
Pack Size 78×69×85cm/Product Size 74×44×96cm/G/W 42KG
