Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.

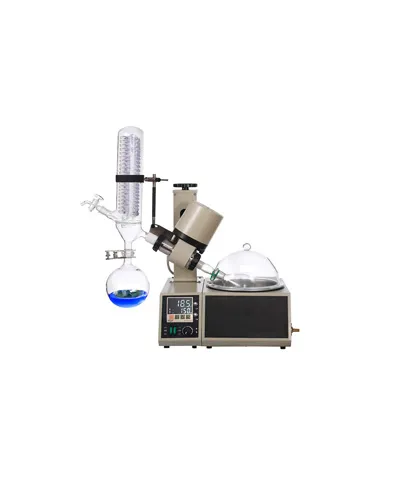

Spesifikasi: Model : DW-RE-52AA Lift: Manual lifting combine with automatic lifting, which is easy to operate. Rotating Speed 0-150rpm/min Rotation control: Rotary stepless control; stepless control; digital display Evap. Capacity / Temp. range/precision: Auto control; digital display; Water Bath:RT.-99℃±1℃ Bath Material: Integral Teflon bath anti-corrosive, fast heating and easy to clean Bath Size: Φ22*11.5cm Vacuum: NO Heater Power: 1KW Flask Volume: 0.25-2L Environment Temp.: 5-40℃ Condenser: Vertical ball mill mouth coil condenser, which is easy to disassemble with fast condense speed Condense area: / Feeder: Valve type feeding pipe equipped with tetrafluoroethylene pipe and water retaining ring Sealing: Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. Factory Configuration: 24# eggplant Rotating Flask 250ml*1 S35 Ball mill mouth Receiving Flask:500ml*1 Input: AC220V/50HZ Size&Weight: Pack size: 56.5*48*54cm; G/W 22KG; Product size: 69*38*98cm
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
