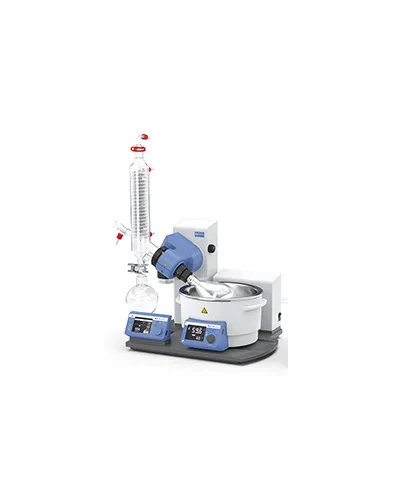

The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative handling concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass guides, the transparent coated vertical condenser makes extremely efficient use of the 1500 cm² cooling surface. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier
Ident. No : 0010004812 Type of cooling : Vertical condenser Cooling surface : 1500 cm2 Speed range : 5 - 300 rpm Reversible direction of rotation : yes Speed tolerance set rotation speed < 100rpm : 1 ±rpm Speed tolerance set rotation speed > 100rpm : 1 ±% Lift : Motor Stroke : 140 mm Heating temperature range : room temp. - 180 °C Heat output : 1350 W Set temperature resolution : 1 ±K Filling volume max. : 4 l Vacuum controller integrated : yes Timer : yes Permissible ambient temperature : 5 - 40 °C Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 20 RS 232 interface : yes USB interface : yes Analog output : yes Voltage : 100 - 240 V Frequency : 50/60 Hz Power input : 100 W Power input standby : 3.3 W Dimensions (W x H x D) : 500 x 430 x 440 mm Weight : 52.65 kg
Rotary Evaporator is an essential instrument in laboratory for the efficient and gentle removal of solvents from samples by evaporation. Besides, it provides excellent distilling solution in a wide range of applications. It can be used as a multi-functional system in combination with vacuum pump, vacuum controller and circulating refrigerators which makes it an unique choice for the laboratory. Used in Evaporation, Distillation, Separation of chemicals, Drying, Extraction, Recovery, Chemical Laboratory, Biological Laboratory, Pharmaceutical. Also known as Rotovap, Rotavapor, Laboratory Rotary Evaporator, Laboratory Rotovap.
