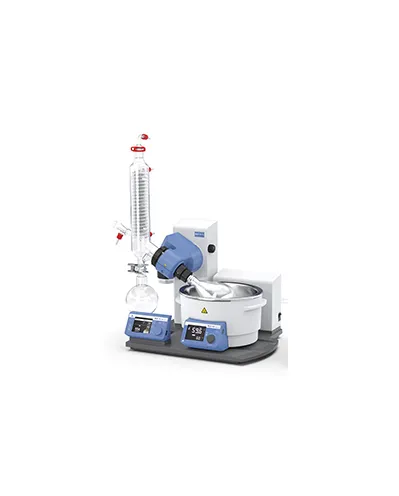

The completely revised RV 10 auto is the flagship of the IKA Rotation Evaporator product line. Its impressive features include an innovative control concept with a bright, high-contrast, TFT, color-graphic control panel, an integrated vacuum controller, cooling water monitoring and mature safety standards. The RV 10 auto offer all properties required for efficient, safe, and cost-effective operations. These include automatic control of the vacuum and cooling water volume. Its intuitive handling concept quickly leads its users to their desired results in every application. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500 cm² cooling surface. Thanks to its extended ramp programming capability, the RV 10 auto allows users to carry out customized procedures. Other innovative features, such as smooth start, interval mode, right-left operation in interval mode, or the timer function for time-lapse tests, make everyday work in the laboratory much easier
Ident. No : 0010004838 Type of cooling : Vertical condenser coated Cooling surface : 1500 cm2 Speed range : 5 - 300 rpm Reversible direction of rotation : yes Speed tolerance set rotation speed < 100rpm : 1 ±rpm Speed tolerance set rotation speed > 100rpm : 1 ±% Lift : Motor Stroke : 140 mm Heating temperature range : room temp. - 180 °C Heat output : 1350 W Set temperature resolution : 1 ±K Filling volume max. : 4 l Vacuum controller integrated : yes Timer : yes Permissible ambient temperature : 5 - 40 °C Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 20 RS 232 interface : yes USB interface : yes Analog output : yes Voltage : 100 - 240 V Frequency : 50/60 Hz Power input : 100 W Power input standby : 3.3 W Dimensions (W x H x D) : 500 x 430 x 440 mm Weight : 31.56 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
