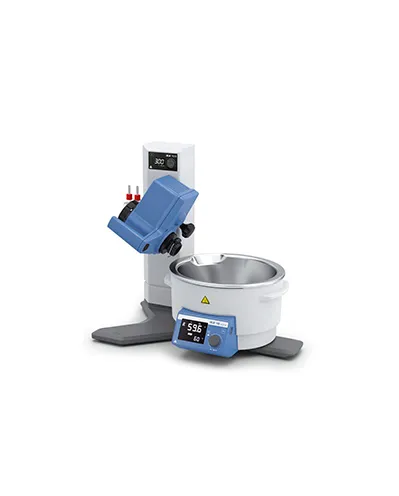

The RV 8 Rotary Evaporator is the manual basic model in the family of IKA Rotation Evaporators. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes
Ident. No : 0010003488 Type of cooling : vertical Cooling surface : 1500 cm2 Motor principle : DC Speed range : 5 - 300 rpm Speed tolerance set rotation speed < 100rpm : 1 ±rpm Speed tolerance set rotation speed > 100rpm : 1 ±% Lift : manual Stroke : 120 mm Heating temperature range : room temp. - 180 °C Heat output : 1400 W Set temperature resolution : 1 ±K Filling volume max. : 3 l Permissible ambient temperature : 5 - 40 °C Permissible relative humidity : 80 % Protection class according to DIN EN 60529 : IP 20 Voltage : 100 - 240 V Frequency : 50/60 Hz Power input : 1500 W DC Voltage : 24 V= Dimensions (W x H x D) : 510 x 490 x 345 mm Weight : 22.36 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
