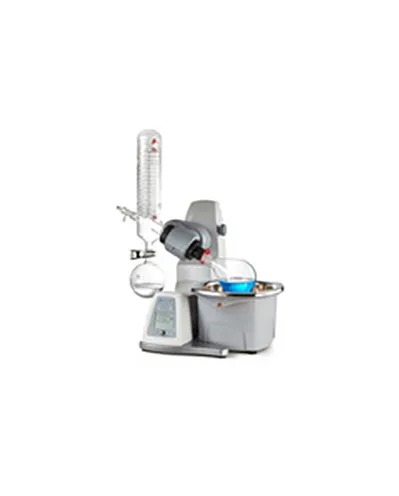

Rotary Evaporator is an essential instrument in laboratory for the efficient and gentle removal of solvents from samples by evaporation. Besides, it provides excellent distilling solution in a wide range of applications. It can be used as a multi-functional system in combination with vacuum pump, vacuum controller and circulating refrigerators which makes it an unique choice for the laboratory. Used in Evaporation, Distillation, Separation of chemicals, Drying, Extraction, Recovery, Chemical Laboratory, Biological Laboratory, Pharmaceutical. Also known as Rotovap, Rotavapor, Laboratory Rotary Evaporator, Laboratory Rotovap.
Motor Type : Brushless DC motor Motor Lift : Automatic Speed Range : 20-280 rpm Display : LCD(speed, temperature, time) Temperature control method : PID control Clockwise and Anti-clockwise : Yes Heating Temperature Range : Room temp. to 180°C Control Accuracy : water: ±1°C oil: ±3°C Heating Power : 1300 W Stroke Displacement : Automatic 150 mm Adjustable Immersion Angle : No Condenser : Patented (cooling surface 1700 cm²) Timer : Yes Time Setting Range : 1-999 min Heating Bath Size : 5 L Permissible Ambient Temperature : 5-40°C Permissible Relative Humidity : 80%RH Protection Class : IP20 Over Protection Temperature : 220°C USB Interface : Yes Voltage / Frequency : 100-120/200-240 V 50/60 Hz Power : 1400 W Notes : Ejection mechanism ensures easy removal of evaporating flask. Remote function provides PC control and data transmission. Dimension[L×W×H] : 465×457×583 mm Weight : 15 kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
