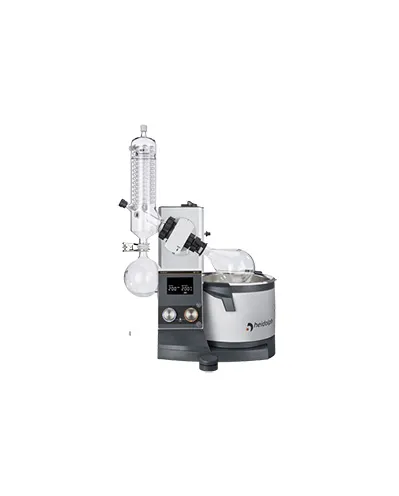

Heidolph Premium Laboratory Equipment stands for reliability, precision, and efficiency.Your demand drives us to provide the fastest service, individual support, and quality without compromise. Heidolph developed the Hei-VAP series of rotary evaporators with an emphasis on the essentials: well thought-out details with a focus on features and functions to facilitate everyday laboratory work. Versatile combinations with glassware and extensive accessories offer the right configuration for every application. Perfectly matched peripherals top off the rotary evaporators – complete systems, all from one source
Lift : hand lift Height adjustment speed : manual Height adjustment : 155 mm Rotation speed : 10 – 280 rpm Rotation speed setting : 7" LCD display Drive : brushless DC motor with electronic speed control Heating capacity : 1,300 W Temp. range heating bath : 20 – 210 °C Temperature accuracy bath : ±1 °C Overheat protection bath : cut-off at 5 °C over set temperature via separate Pt 1000 Secondary overtemp. cut-off : 250 °C Bath temperature setting : 7" LCD display Heating bath temperature control : electronic / digital Material heating bath : stainless steel AISI 316 L Diameter heating bath : inner 253 mm, outer 291 mm Volume heating bath : 4.5 l Max. size evaporating flask : 5 l Display vapor temperature required accessories : yes vapor temperature sensor Timer : yes Programmable ramps : yes Supply power : 1,400 W Dimensions with glassware set G3 max. w / d / h : 739 × 532 × 887 mm Dimensions with glassware set G3 XL max. w / d / h : 739 × 532 × 920 mm Condensing surface : 1,400 cm2 Condensing surface XL condenser : 2,200 cm2 Weight w/o glassware assembly : 14.7kg
Rotary evaporator, also known as rotavap or rotovap, is an evaporation instrument widely used in laboratories. It is composed of motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure, used in chemistry, chemical industry, biomedicine and other fields. Rotary evaporators can be used to recover and evaporate organic solvents. It uses a motor to drive the distillation bottle to rotate.
The novel floor type evaporator adopts big sized rotating flask to increase the evaporation area. With flask rotating in heated water bath under vacuum condition, the liquid material in flask evaporates fast.This series big sized rotary evaporator is an ideal instrument for drying, concentration, and recovery experiments in pharmaceutical, chemical, colleges, scientific research laboratories and other industries.
DW-ADQ series is a new type of rotary evaporator developed by our company, which can be used for the concentration of 5 materials at the same time. Apart from the elegant appearance with compact design, easy operation, precise temperature control, reliable capability, practical and humanized design and durability, DW-ADQ series rotary evaporator(5*50ml, 5*100ml, 5*150ml sized optional) is also with the following features.
