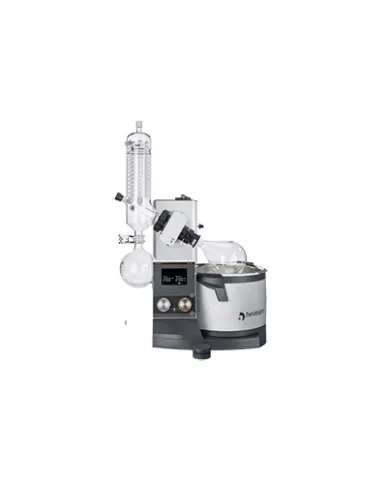

Rotary Evaporators – Heidolph Hei-VAP Ultimate ML

Category :
Rotary Evaporator

Price :

Rp.137.400.000

Chat Us

DESCRIPTION
SPECIFICATION

Heidolph Premium Laboratory Equipment stands for reliability, precision, and efficiency.Your demand drives us to provide the fastest service, individual support, and quality without compromise. Heidolph developed the Hei-VAP series of rotary evaporators with an emphasis on the essentials: well thought-out details with a focus on features and functions to facilitate everyday laboratory work. Versatile combinations with glassware and extensive accessories offer the right configuration for every application. Perfectly matched peripherals top off the rotary evaporators – complete systems, all from one source

Lift : motor lift
Height adjustment speed : 25 mm /s
Height adjustment : 155 mm
Rotation speed : 10 – 280 rpm
Rotation speed setting : 7" LCD display
Drive : brushless DC motor with electronic speed control
Heating capacity : 1,300 W
Temp. range heating bath : 20 – 210 °C
Temperature accuracy bath : ±1 °C
Overheat protection bath : cut-off at 5 °C over set temperature via separate Pt 1000
Secondary overtemp. cut-off : 250 °C
Bath temperature setting : 7" LCD display
Heating bath temperature control : electronic / digital
Material heating bath : stainless steel AISI 316 L
Diameter heating bath : inner 253 mm, outer 291 mm
Volume heating bath : 4.5 l
Max. size evaporating flask : 5 l
Display vapor temperature required accessories : yes vapor temperature sensor
Timer : yes
Programmable ramps : yes
Supply power : 1,400 W
Dimensions with glassware set G3 max. w / d / h : 739 × 477 × 887 mm
Dimensions with glassware set G3 XL max. w / d / h : 739 × 477 × 920 mm
Condensing surface : 1,400 cm2
Condensing surface XL condenser : 2,200 cm2
Weight w/o glassware assembly : 15kg
