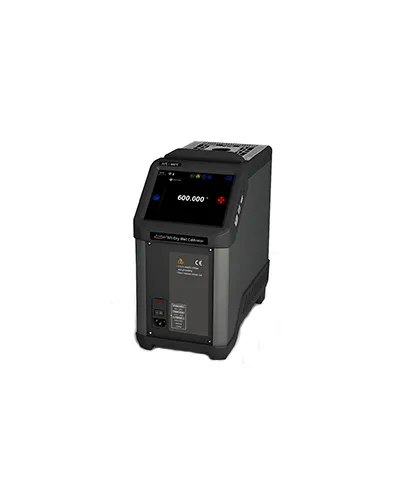

Dry Well Calibrator – Additel ADT875-350

Category :
Temperature Calibrator

Price :

Rp.109.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The Additel 875 Series Dry Well Calibrators combine excellent performance in stability, radial and axial uniformity, and loading with speed, ruggedness and portability. But we don’t stop there! The Process Calibrator option adds the capabilities of a three-channel thermometer readout and a documenting process calibrator. We’ve also incorporated a unique option to select your own temperature range within the range of the model selected. We’re calling this the CYOR option or Choose Your Own Range option. When you purchase the CYOR option, you pick the upper and lower temperature range needed and we calibrate and optimize the dry well’s performance over your selected range. Each unit has a color touch screen display, dual-zone control, and much more. You are just going to love these new dry wells

Temperature range : 33°C to 350°C
Display accuracy : ±0.2°C at Full Range
Stability (30 min) : ±0.02°C at full range
Axial uniformity at 60 mm (2.4 in) : ±0.04°C at 33°C, ±0.1°C at 200°C & ±0.2°C at 350°C
Radial uniformity : ±0.01°C at 33°C, ±0.015°C at 200°C & ±0.02°C at 350°C
Loading effect : ±0.15°C (Display Sensor) & ±0.015°C (External Sensor)
Hysteresis (display sensor) : 0.03°C
Environmental conditions : 8°C to 38°C guaranteed accuracy & 0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation
Storage conditions : -20°C to 60°C
IP rating : IP20
Immersion depth : 150 mm (5.9 in)
Insert OD : 24.8 mm (0.98 in)
Heating time : 5 min: 33°C to 350°C
Cooling time :
15 min : 350°C to 100°C
10 min : 100°C to 50°C
10 min : 50°C to 33°C
Typical time to stability : 10 min
Resolution : 0.01°C
Units : °C, °F and K
Display : 6.5 in (165 mm) color touch screen
Power requirements : 90-254 VAC, 45-65 Hz, 1200 W
Communication : USB A, USB B, RJ45, WiFi, Bluetooth
Size (H x W x D) : 320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)
Weight : 8.2 kg (18.1 lbs)
