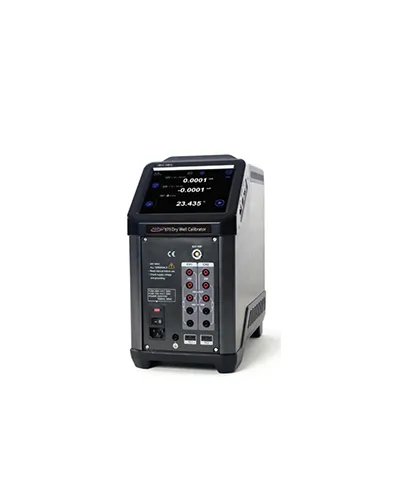

Dry Well Calibrator – Additel ADT875PC-155

Category :
Temperature Calibrator

Price :

Rp.178.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The Additel 875 Series Dry Well Calibrators combine excellent performance in stability, radial and axial uniformity, and loading with speed, ruggedness and portability. But we don’t stop there! The Process Calibrator option adds the capabilities of a three-channel thermometer readout and a documenting process calibrator. We’ve also incorporated a unique option to select your own temperature range within the range of the model selected. We’re calling this the CYOR option or Choose Your Own Range option. When you purchase the CYOR option, you pick the upper and lower temperature range needed and we calibrate and optimize the dry well’s performance over your selected range. Each unit has a color touch screen display, dual-zone control, and much more. You are just going to love these new dry wells.

Temperature range : -40°C to 155°C
Display accuracy : ±0.18°C at full range
Stability (30 min) : ±0.01°C at full range
Axial uniformity at 60 mm (2.4 in) : ±0.07°C at full range
Radial uniformity : ±0.01°C at full range
Loading effect : ±0.1°C (display sensor) & ±0.1°C (display sensor)
Hysteresis (display sensor) : 0.025°C
Environmental conditions : 8°C to 38°C guaranteed accuracy & 0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation
Storage conditions : -20°C to 60°C
IP rating : IP20
Immersion depth : 150 mm (5.9 in)
Insert OD : 25.8 mm (1.02 in)
Heating time :
13 min : - 40°C to 155°C
5 min : - 40°C to 23°C
8 min : 23°C to 155°C
Cooling time :
28 min : 155°C to - 40°C
8 min : 155°C to 23°C
20 min : 23°C to - 40°C
Typical time to stability : 10 min
Resolution : 0.01°C
Units : °C, °F and K
Display : 6.5 in (165 mm) color touch screen
Power requirements : 90-254 VAC, 45-65 Hz, 580 W
Communication : USB A, USB B, RJ45, WiFi, Bluetooth
Readout Accuracy for 100 ohm PRT (Probe Accuracy Not Included) :
±0.009°C at -40°C
±0.010°C at 0°C
±0.012°C at 50°C
±0.017°C at 155°C
±0.019°C at 200°C
±0.026°C at 350°C
±0.030°C at 420°C
±0.042°C at 660°C
Readout Resolution : 1 mΩ
Reference Resistance Range : 0Ω to 400Ω
Reference Resistance Accuracy : 0Ω to 50Ω: 0.002Ω / 50Ω to 400Ω: 0.004% RD
RTD Channels : 2
RTD Measurement Accuracy (excl sensor) Compliance :
0Ω to 25Ω : 0.002Ω
25Ω to 400Ω : 0.004% RD
400Ω to 4K Ω : 0.008% RD
RTD Measurement Resolution : 0Ω to 400Ω: 1 mΩ / 400Ω to 4K Ω: 0.01Ω
RTD Measurement Resistance Range : 0Ω to 4KΩ
RTD Characterizations : PT10, PT25, PT50, PT100, PT200, PT500, PT1000, CU10, CU50, CU100, NI100, NI120
RTD Connection : Four 4 mm input jacks
RTD Channels : 2 channels. Both accept 2, 3, or 4-wire RTDs
TC Channel : 2
TC Measurement Accuracy (excl sensor) :
Type K :
±0.13°C at 0°C
±0.15°C at 155°C
±0.18°C at 350°C
±0.24°C at 660°C
TC Range : –100 mV to 100 mV
TC Resolution : 0.001 mV, Input Impedance <1 MΩ
TC Voltage Accuracy : 0.02% RD + 5 µV
Internal CJC Accuracy : ±0.35°C (ambient from 0°C to 50°C)
Current Range : –30 mA to 30 mA
Current Accuracy : 0.02% RD + 2 µA
Current Resolution : 0.001 mA, Input Impedance: < 10Ω
Voltage Range : –30 V to 30 V
Voltage Accuracy : ±0.02% RD + 2 mV
Voltage Resolution : 0.001 V; Input impedance: < 1MΩ
Switch Test : Mechanical or Electrical
DC 24V Output : 24V ±1 V, MAX60 mA
Hart Communication : Optional (ADT875PC Model)
Documentation : Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions
Size (H x W x D) : 320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)
Weight : 9.9 kg (21.8 lbs)
