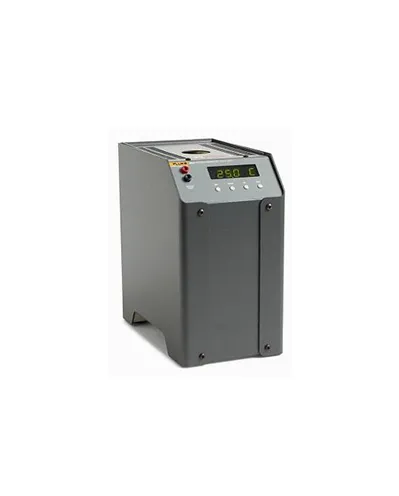

Dry Well Calibrators – Fluke 9103

Category :
Temperature Calibrator

Price :

Rp.83.500.000

Chat Us

DESCRIPTION
SPECIFICATION

Fluke 9103 is dry block calibrator in the industry in performance, size, weight, convenience, ease of calibration, software, and price. In addition, the heating and cooling rate of each of these dry-well calibrators is adjustable from the front panel, thermal switches can be checked for actuation testing, and multiple-hole inserts are available for a variety of probe sizes. Fluke Calibration dry wells are easy to calibrate. You don’t even have to open the case. This means less maintenance costs and less down time when a dry well does need calibration

Temperature Range : –25 °C to 140 °C
Accuracy : ± 0.25 °C (holes greater than 1/4" [6.35 mm]: ± 1 °C)
Stability : ± 0.02 °C at –25 °C
Well-to-Well Uniformity : ± 0.1 °C between similarly sized wells
Heating Times : 18 minutes from ambient to 140 °C
Cooling Times : 20 minutes from ambient to –25 °C
Stabilization Time : 7 minutes
Immersion Depth : 124 mm (4.875")
Inserts : Insert A, B, C, or D included (specify when ordering)
Computer Interface : RS-232 interface
Power : 115 V AC (± 10 %)
Dimension (WxHxD) : 143 x 261 x 245 mm
Weight : 5.7 kg (12 lb)
