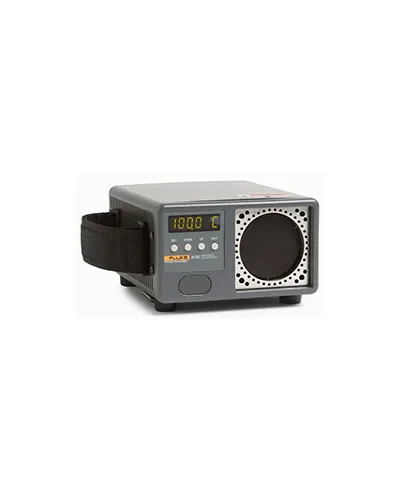

Portable Infrared Calibrators – Fluke 9132

Category :
Temperature Calibrator

Price :

Rp.138.500.000

Chat Us

DESCRIPTION
SPECIFICATION

For IR calibrations above normal ambient, the 9132 provides a stable blackbody target up to 500°C (932°F). With accuracy to ±0.5°C and stability to ±0.1°C, this new portable IR unit can certify most handheld pyrometers. Short heating and cooling times mean you won’t have to wait long to get your work done. From room temperature to 500°C the 9132 will be stable within 30 minutes. You won’t find a more compact IR calibrator

Temperature Range : 50 °C to 500 °C
Accuracy : ± 0.5 °C at 100 °C
Stability : ± 0.1°C at 100°C
Target Size : 57 mm (2.25 in)
Target Emissivity : 0.95 (± 0.02 from 8 to 14 µm)
Resolution : 0.1 °
Heating Time : 30 minutes (50 °C to 500 °C)
Cooling Time : 30 minutes (500 °C to 100 °C)
Computer Interface : RS-232 interface
Power : 115 V AC (± 10 %)
Size (HxWxD) : 102 x 152 x 178 mm
Weight : 1.8 kg (4 lb)
