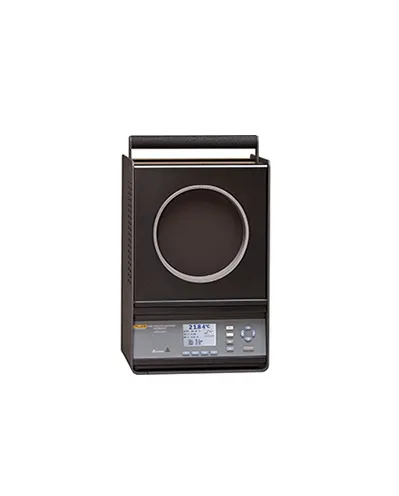

Precision IR Calibrators – Fluke 4181

Category :
Temperature Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The 4180 Series of Precision Infrared Calibrators for infrared thermometers and thermal imagers is fast, accurate, and easy to use. It comes with an accredited calibration from one of the world’s most trusted temperature calibration laboratories, sample calibration procedures for Fluke thermometers built right in and everything you need to get started making high-quality infrared thermometer calibrations. This is the perfect solution for any infrared thermometer or thermal imager within its temperature range. These calibrators give more consistent, accurate and reliable calibrations because emissivity is radiometrically calibrated, and the target size minimizes size of source effect errors.

Temperature range : 35 to 500 C
Accuracy : ± 0.35 °C at 35 °C
Stability : ± 0.05 °C at 35 °C
Uniformity2 (5.0 in dia of center of target) : ± 0.10 °C at 35 °C
Heating time : 20 min: 35 °C to 500 °C
Cooling time :
100 min: 500 °C to 35 °C
40 min: 500 °C to 100 °C
Stabilization time : 10 minutes
Nominal emissivity : 0.95
Thermometer emissivity compensation : 0.9 to 1.0
Target diameter : 152.4 mm (6 in)
Computer interface : RS-232
Power : 115 V ac (± 10%), 10 A, 50/60 Hz, 1000 W
Safety : EN 61010-1:2001, CAN/CSA C22.2 No. 61010.1-04
Size (HxWxD) : 356 mm x 241 mm x 216 mm (14 in x 9.5 in x 8.5 in)
Weight : 9.5 kg (21 lb)
