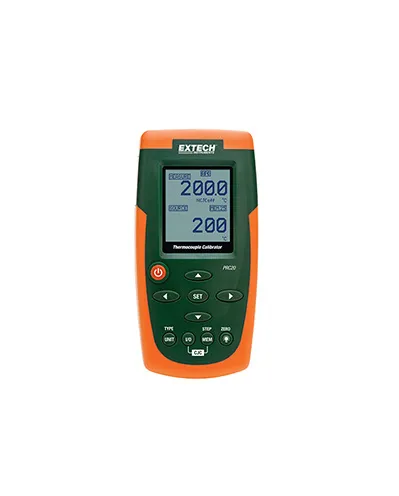

Thermocouple Calibrator - Extech PRC20

Category :
Temperature Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The PRC20 sources and measures eight thermocouple type devices (J, K, T, E, C, R, S and N) and provides precision output displayed as Centigrade/Fahrenheit or mV. It has five user adjustable calibration presets and a Type K temperature range of -58 to 2498 degrees F (-50 to 1370 degrees C). The PRC20 is suitable for Lab and field calibration, Engineering research and design, Manufacturing and test engineering, Temperature control process troubleshooting and HVAC applications.

Thermocouple :
Type J : -50 to 1000°C
Type K : -50 to 1370°C
Type T : -120 to 400°C
Type E : -50 to 750°C
Type C : 0 to 1750°C
Type R/S : 0 to 1750°C
Type N : -50 to 1300°C
Voltage : -10.00mV to +60.00mV / 10μV
Resolution : 0.1° (up to 999.9) or 1° (over 999.9°) for J, K, T, E ; 1° for R, N; 0.5° for C, S
Input Impedance : 10 MΩ
Sampling Time : 4 times/second
Meter Wt : 8oz (225g) - not including battery weight
Meter Dims (LxWxH) : 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
