Temperature Range : 100°C to 1210°C
Display Accuracy :
±1.2°C @ 100°C
±1.2°C @ 300°C
±1.2°C @ 600°C
±1.6°C @ 900°C
±2.0°C @ 1210°C
Stability : ±0.1°C
Axial Uniformity (20mm zone) :
±0.6°C @ 100°C
±1.2°C @ 300°C
±1.5°C @ 600°C
±1.5°C @ 900°C
±1.5°C @ 1210°C
Radial Uniformity :
±0.2°C @ 100°C
±0.3°C @ 300°C
±0.4°C @ 600°C
±0.8°C @ 900°C
±1°C @ 1210°C
Loading Effect : ±0.5°C
Environmental Conditions : 8°C to 38°C guaranteed accuracy 0°C to 50°C, 0% to 90% RH non-condensing,
3000 M altitude for normal operation
Storage Conditions : -20°C to 60°C
Immersion Depth :
XR style inserts = 138 mm (5.43")
XS style inserts = 116 mm (4.57")
(see insert ordering info for more details)
Insert Size - OD : 24.8 mm (0.98 inches)
Heating Time : 50 min: 23°C to 1210°C
Cooling Time : 50 mins:1210°C to 300°C / 50 mins: 300°C to 50°C
Typical Time to Stability : 15 min
Resolution : 0.01°C
Units : °C, °F, and K
Display : 6.5 in (165 mm) color touch screen
Power Requirements : 90-254 VAC, 45-65 Hz, 580 W
Communication : USB A, USB B, RJ45, WiFi, Bluetooth
Localization : English, Chinese, Japanese, Russian, German

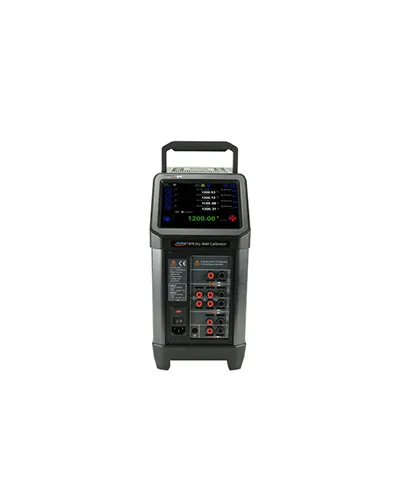

Thermocouple Calibrator Furnaces - Additel ADT875PC-1210
TC Measurement Channels : Patented TC terminals: Accepting S, R, K, B, N, E, J, T, L, and U
TC Measurement Accuracy Type K Ch. 1-4 (excluding sensor) :
±0.182°C @ 100°C
±0.266°C @ 300°C
±0.310°C @ 600°C
±0.397°C @ 900°C
±0.517°C @1210°C
TC Range :
–75 mV to 75 mV (UUT Channels 1-4)
–18 mV to 18 mV (Reference Channel)
TC Resolution : 0.0001 mV, Input Impedance < 10Ω
TC Voltage Accuracy : 0.02% RD + 8μV (ch. 1-4) / 0.01% RD + 2μV (ref ch.)
Internal CJC Accuracy : ±0.35°C (ch. 1-4) / ±0.25°C (ref ch.)
Current Range : –30 mA to 30 mA
Current Accuracy : ±(0.02% of rdg+ 2µA)
0.001 V; Input impedance:> 1MΩ : 0.0001V
DC 24V Output : 24 V ± 10%, MAX 60 mA
Hart Communication : Optional (ADT875PC and ADT878PC Models)
Temperature Coefficient 0°C to 8°C and 38°C to 50°C :
TC Readouts: ±5 ppm FS/°C
Current: ±5 ppm FS/°C
Voltage: ±5 ppm FS/°C
Switch Test : Mechanical or Electrical - Channels 1 & 2 only
Documentation : Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions
Size (H x W x D) : 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in)
Weight : 10.6 kg (23.4 lbs)
