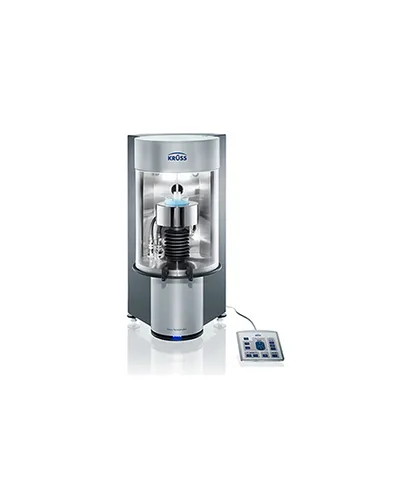

Our universal Force Tensiometer K100SF performs high-precision, automatic and reliable measurements of surface tension and interfacial tension, critical micelle concentration CMC and contact angle on solids, fibers and powders. With high-quality components and a uniquely wide range of methods, the instrument carries out many tasks in the field of surfactant analysis and wetting measurement for your quality assurance or research. The simple changeover between different measuring methods takes place entirely without reconfiguring the instrument
Maximum load : 6 g Resolution : 0.1 μg Measurement rate : - Adjustment : fully automated Adjustment weight : internal weight Travel distance : >110 mm Resolution : 20 μm Travel speed : - Type of motor : - Optical height sensor : yes Simple platform : - Thermostated jacket : - Inverse CMC : - Integrated sample stage : - PC : USB 2.0 Auxiliary : RS232 Thermostat : external (optional) Inert gas : yes Voltage : 100 to 240 V Power consumption : 40 W Frequency : 47 to 63 Hz Temperature : operating: 15 to 30 °C Humidity : > 30% without condensation Footprint : 300 mm × 390 mm (W × D) Height : 585 mm Weight (without accessories) : 24 kg
Our Force Tensiometer – K11 measures the surface tension and interfacial tension based on the force which acts when a measuring probe is wetted. The instrument features a high-quality force sensor which ensures accurate results and high reproducibility. In the interests of precision, the probes are also manufactured with highly accurate contours. Our instrument therefore provides equally reliable results for measurements carried out using the ring, plate or rod method
Our Force Tensiometer K20 is a robust, semi-automatic instrument for the precise measurement of surface tension and interfacial tension. Using the ring and plate method as the main tensiometric methods, it produces reliable measurements for the routine quality assurance of your surfactant solutions and interfacial processes
Our universal Force Tensiometer K100C performs high-precision, automatic and reliable measurements of surface tension and interfacial tension, critical micelle concentration CMC and contact angle on solids, fibers and powders. With high-quality components and a uniquely wide range of methods, the instrument carries out many tasks in the field of surfactant analysis and wetting measurement for your quality assurance or research. The simple changeover between different measuring methods takes place entirely without reconfiguring the instrument
