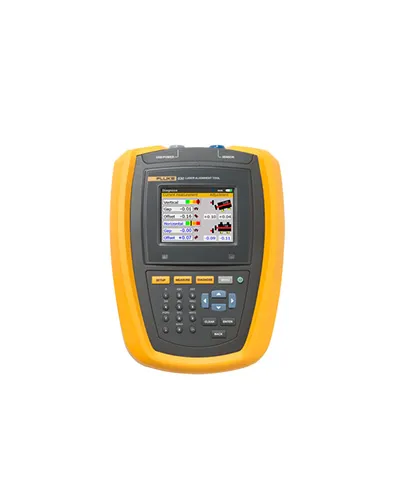

Laser Shaft Alignment - Fluke 830

Category :
Vibration Meter and Calibrator

Price :

Rp.166.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The Fluke 830 Laser Shaft Alignment tool is easy-to-use, giving you fast, accurate and actionable answers that will keep your plant up and running. When it comes to laser shaft alignment, data is good but answers are better. Unlike using the straightedge method or dial indicators the Fluke 830 performs the complicated alignment calculations for you, meaning you'll have the answers you need to quickly align your machine and get your plant up and running fast. The Fluke 830 uses a patented single laser precision alignment system that provides accurate and repeatable measurement results so you can be assured you're addressing misalignment problems properly

CPU : Intel XScale PXA270 running at 312 MHz
Memory : 64 MB RAM, 64 MB flash
Sensor
Measurement principle : Coaxial, reflected laser beam
Environmental protection : IP 67 (submersible, dustproof)
Ambient light protection : Yes
Storage temperature : -20°C to 80°C (-4°F to 176°F)
Operating temperature : 0°C to 55°C (32°F to 131°F)
Detector : Measurement area: unlimited, dynamically extendible (U.S. Patent 6,040,903)
Resolution : 1 μm; Accuracy (avg): > 98%
Inclinometer : Measurement range: 0° to 360°; Resolution: < 1°
Prism
Type : 90° roof prism; Accuracy (avg): > 99%
Environmental protection : IP 67 (submersible, dustproof)
Operating temperature : -20°C to 60°C (-4°F to 140°F)
Storage temperature : -20°C to 80°C (-4°F to 176°F)
Dimensions : 100 mm x 41 mm x 35 mm (4 in x 1 5/8 in x 1 3/8 in)
Weight : 65 g (2 1/2 oz.)
Carrying case
Dimensions : 565 mm x 343 mm x 127 mm (22 1/4 in x 13 1/2 in x 5 in)
Weight, including all standard parts : 5.6 kg (12.3 lb)
