Operating system : windows CE
Number of input channels : 4 analog channel and 1 aux channel
Connector of input channels : analog : BNC and 7 pin lemo, aux : 6 pin lemo
Channel coupling : AC, DC, IEPE 0V microphone
Aux channel : TTL or non-TTL in (external trigger or tacho)
DSP processor : TI TMS320C6713B
External memory : compact flash card
Battery : Li-Po 7.4V 5800 mAhr, rechargeable
PC communication interface : USB 1.1 mini B type USB connector
LCD display : 640x480 6.4 inch TFT color touch screen
Operating temperature : -10 C to 45 C
Safety certifications : CE
Sealing/ruggerdness : IP 65
Housing material : dual material : hard ABS plastic and soft TPR
Input signal range : 5 volt, 20 volt
Dynamic range : 130dB (measured from spectrum)
A/D converter : 24 bit sigma-delta A/D converter
Frequency range : 40 KHZ
Imput impedance : 1M Ohm
Weight : 2.0 kg

Vibration meter :
Type of vibration : acceleration, velocity and displacement
Type of detection : RMS, peak, peak to peak, true peak and quest factor
Filters : 2Hz-1kHz, 5Hz-1kHz, 10Hz-1kHz, 2Hz HP, 5Hz HP, 10Hz HP
Display : trend chart (vibration vs time or rpm) or bar chart
Severity : ISO 10816-3 or user defined

FFT analysis :
FFT real time rate : 40 kHz, dual channel @12800 lines
FFT resolution : 100 - 12,800 lines

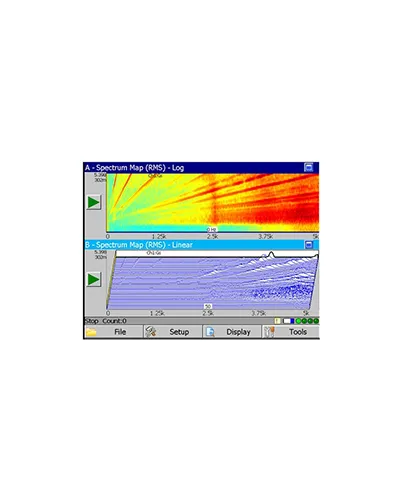

Spectral map : 3D waterfall or intensity plots for countinues spectrum measurements
Time windows : hanning, hamming, flattop, rectangular, force and exponential

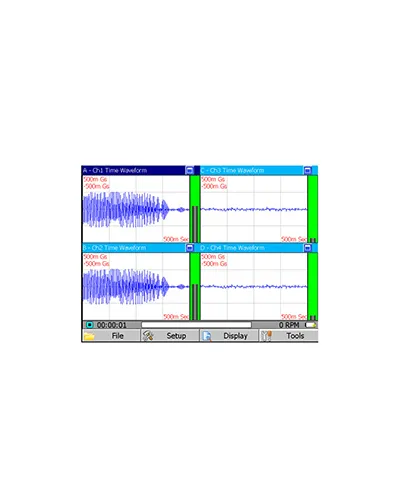

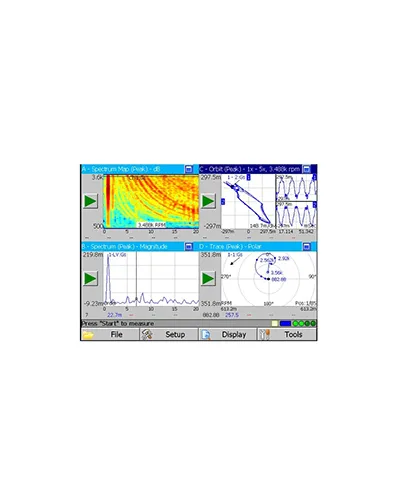

Analysis functions : spectrum, power spectrum, cross power spectrum, FRFF, time waveform, envelope spectrum, orbit, coherence and PSD
Engineering units : automatic unit transform with pre-defined table
Zoom FFT : yes
Average : linear, exponential, time, peak hold
Trigger : external, input channel triggering, pre/post trigeering
Cursor : single, harmonic, harmonic+ single, peak, band cursor, mark cursor, side band cursor
Envelope filter : 500-2kHz, 1k-2.5kHz, 2k-5kHz, 5k-10kHz or used defined

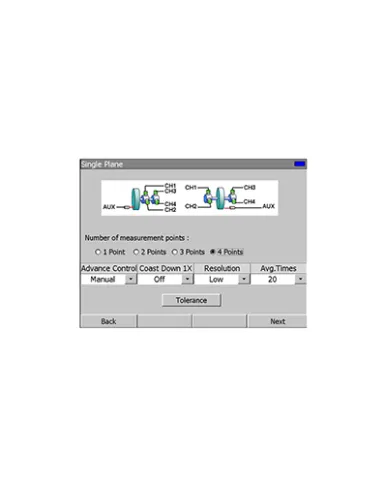

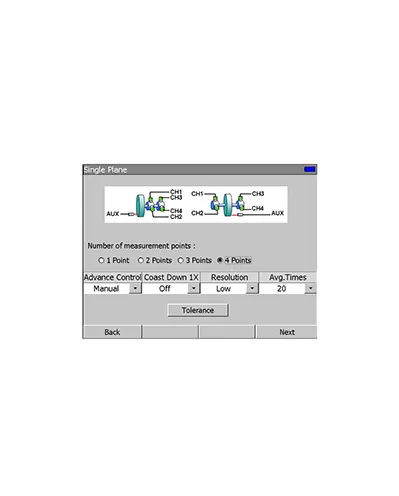

Rotor balancing :
Rotor type for balancing : single plane, dual plane, 3 plane, 4 plane, overhung dual plane, 3 weights balancing
Balancing speed : 60 rpm to 300,000 rpm
Order resolution : low, normal, high, 0.03, 0.015, 0.008 and 0.004
Average number : 10, 20, 50 and 100
Balancing grade : buiilt-in ISO 1940 standard or user defined
Tools : 1x cost down order trace, decoupled balancing (static and couple), uneqal radii, componen calculation, drill depth, vibration history, balancing history and recalculation of balancing coefficients

Octave analysis :
Octave spectrum : full octave, 1/3 octave and 1/12 octave
Maximum band with 4 channel on : full octave : 32kHz, 1./3 octave : 20kHz, 1/12 octave : 5kHz
Maximum band with 1 channel on : full octave : 32kHz, 1./3 octave : 40kHz, 1/12 octave : 20kHz
Integration time : 1/128, 1/64, 1/32,1/16, 1/8, 1/4, 1/2, 1,2,4
Detection method : fast, slow, impuls, linear
Trigger sources : off, external, input channels, manual
Weighting : A, C flat ISO 2631, 6954, 8041 and user defined
