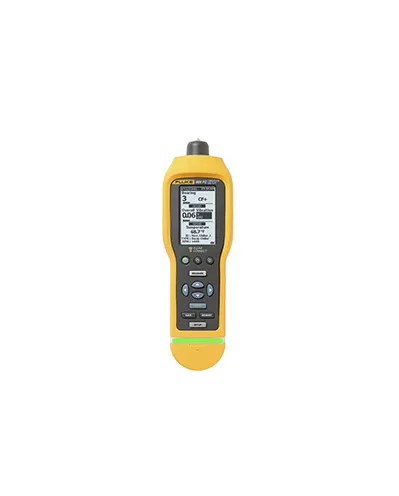

Vibration Meter - Fluke 805 FC

Category :
Vibration Meter and Calibrator

Price :

Rp.39.800.000

Chat Us

DESCRIPTION
SPECIFICATION

The Fluke 805 FC vibration meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition. Fluke 805 FC is a full vibration meter that is designed to give maintenance professionals detailed, high accuracy measurements of vibration to determine the status of things such as chillers, fans, cooling tower drives, centrifugal pumps, positive displacement pumps, air compressors, blowers, gearboxes, machine tools and many other types of machinery. The reliable, repeatable, accurate way to check bearings and overall vibration and stay in contact with your team using Fluke Connect with ShareLive™

Low frequency range (overall measurement) : 10 Hz to 1,000 Hz
High frequency range (CF+ measurement) : 4,000 Hz to 20,000 Hz
Severity levels : Good, satisfactory, unsatisfactory, unacceptable
Vibration limit : 50 g peak (100 g peak-peak)
A/D converter : 16-bit
Signal to noise ratio : 80 dB
Sampling rate : Low frequency : 20,000 Hz & High frequency : 80,000 Hz
Sensor
Sensitivity : 100 mV g ± 10%
Measurement range : 0.01 g to 50 g
Low frequency range (overall measurement) : 10 Hz to 1,000 Hz
High frequency range : 4,000 Hz to 20,000 Hz
Resolution : 0.01 g
Accuracy : At 100 Hz ± 5% of measured value
Amplitude Units
Acceleration : g, m/sec²
Velocity : in/sec, mm/sec
Displacement : mils, mm
Battery type : AA (2) Lithium Iron Disulfide
Battery life : 250 measurements
Size (L x W x H) : 24.1 cm x 7.1 cm x 5.8 cm (9.5 in x 2.8 in x 2.3 in)
Weight : 0.40 kg (0.89 lb)
