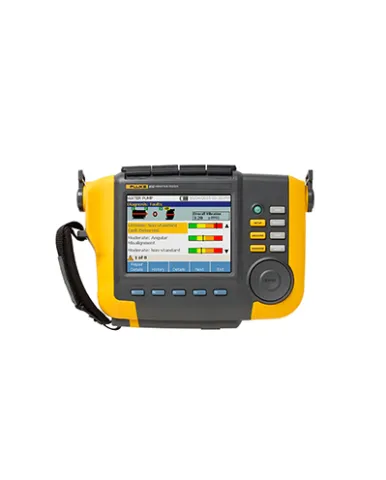

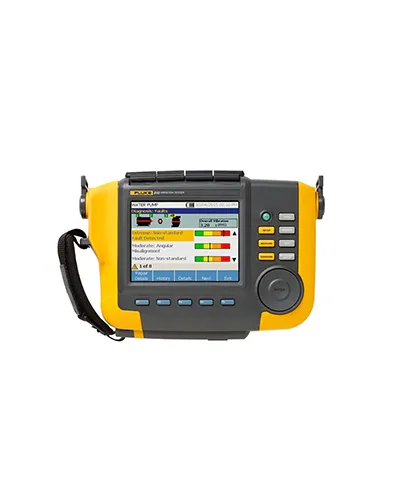

Vibration Tester – Fluke 810

Category :
Vibration Meter and Calibrator

Price :

Rp.215.800.000

Chat Us

DESCRIPTION
SPECIFICATION

The Fluke 810 Vibration Tester is the most advanced troubleshooting tool for mechanical maintenance teams who need an answer now. The unique diagnostic technology helps you quickly identify and prioritize mechanical problems, putting the expertise of a vibration analyst in your hands. The Fluke 810 Vibration Tester puts you one step ahead by coupling a powerful diagnostic engine with a simple step-by-step process to report on specific machine faults and their severity the first time measurements are taken, without prior measurement history. Overall vibration measurements and spectral diagrams give technicians the ability to quickly asses overall machine health, while enhanced reporting and actionable recommendations give you the confidence you need to address critical problems first

Analysis For :
Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles
Machine Rotational Speed Range : 200 rpm to 12000 rpm
Diagnosis Details : Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra
Electrical Specifications :
Ranging : Automatic
A/D Converter : 4 channel, 24 bit
Usable Bandwidth : 2 Hz to 20 kHz
Sampling : 51.2 Hz
Digital Signal Processing Functions : Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
Sampling Rate : 2.5 kHz to 50 kHz
Dynamic Range : 128 dB
Signal To Noise Ratio : 100 dB
FFT Resolution : 800 lines
Spectral Windows : Hanning
Frequency Units : Hz, orders, cpm
Amplitude Units : in/sec, mm/sec, VdB (US), VdB* (Europe)
Display : ¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight
Dimensions (H x D x W) : 18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)
Weight (With Battery) : 1.9 kg (4.2 lb)
