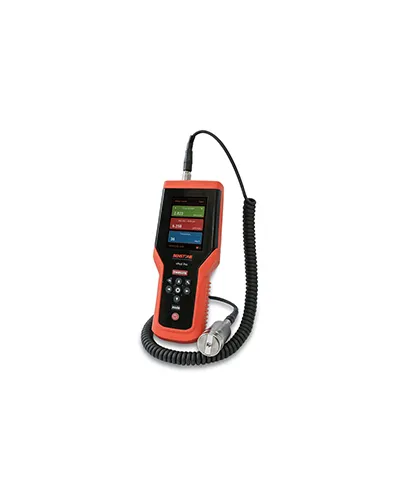

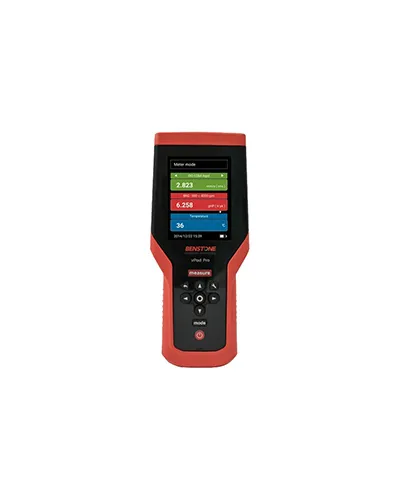

Benstone vpod Pro is built for tough enviroments with an IP65 dustproof and waterproof rating along with an anti-drop rubber sleeve. Equipped with 3.5-inch color display for intuitive and easy-to-understand operation interface, its built-in 24G flash memory provides sufficient storage space along with an innovative sensor design allowing simultaneosly measure vibration values, bearing condition and temperature at the same time. Optional spectrum analysis function and route-based measurement function for a large amount of data collection
Parameter measurement : vibration level, bearing condition and temperature at the same time plus vibration spectrum Vibration sensor : IEPE type accelerometer Measurement range : 50(g) Sensitivity : 100 (mV/g) typical Frequency response : 1-8 kHz (1dB), 0.3-10 kHz (3dB) Resonance frequency : 34 kHz Non-lineariry : 1kHz Transverse sensitivity : 5% Shock limit : 5000g Residual noise : 0.0004 (g RMS) Temperature sesnor : infrared thermometer Resolution : 0.1C Measurement range temperature : 40 C - 115C Band & resolution : 1kHz (1600 lines or 10kHz (6400 lines) Processor : ARM Cortex-A8, 1GHz Display : 3.5" color TFT LCD, 240X320 Storage : 24G flash memory Input channels : 1 analog & 1 digital input Input connector : 8 pin lemo connector Input range : 5V Input coupling : IEPE, 2mA/19V +1V A/D resolution : 24 bits Max. sampling rate : 25.6 kHz Max. frequency : 10kHz Analog high pass filter : -10 at 3Hz, -5% at 5Hz Max. input voltage : +20V Power supply : 18650 battery x 2 Battery life : 6 hours USB : 2.0 client, type-C connector Bluetooth : 4.1 for headset WIFI : 802.11 b/g 2.4GHz Camera : 640 x480 pixels Housing : ABS plastic and rubber sleeve Certification : IP65, CE mark, rohs Dimension : 204x85x45 mm Weight : 0.49 kg
The impaq Elite Portable Dynamic Signal Analyzer is a 4-channel data collector and portable vibration analyzer powered by Microsoft Windows CE and state-of-the-art DSP technology. impaq Elite's ruggedized housing is made by a high-tech, dual-material injection process, consisting of hard ABS plastic (black) and soft TPR plastic (yellow). The Elite also has rubber seals for operation in harsh environments. Equipped with a VGA resolution, color touch screen, impaq Elite brings you a brand-new experience with in-field analyzers
The impaq Elite Portable Dynamic Signal Analyzer is a 4-channel data collector and portable vibration analyzer powered by Microsoft Windows CE and state-of-the-art DSP technology. impaq Elite's ruggedized housing is made by a high-tech, dual-material injection process, consisting of hard ABS plastic (black) and soft TPR plastic (yellow). The Elite also has rubber seals for operation in harsh environments. Equipped with a VGA resolution, color touch screen, impaq Elite brings you a brand-new experience with in-field analyzers
Include : Data recorder software for impaq elite Vibration meter software
The impaq Elite Portable Dynamic Signal Analyzer is a 4-channel data collector and portable vibration analyzer powered by Microsoft Windows CE and state-of-the-art DSP technology. impaq Elite's ruggedized housing is made by a high-tech, dual-material injection process, consisting of hard ABS plastic (black) and soft TPR plastic (yellow). The Elite also has rubber seals for operation in harsh environments. Equipped with a VGA resolution, color touch screen, impaq Elite brings you a brand-new experience with in-field analyzers
Include : Data recorder software for impaq elite Vibration meter software FFT analysis with 500 bearing fault frequency database software
