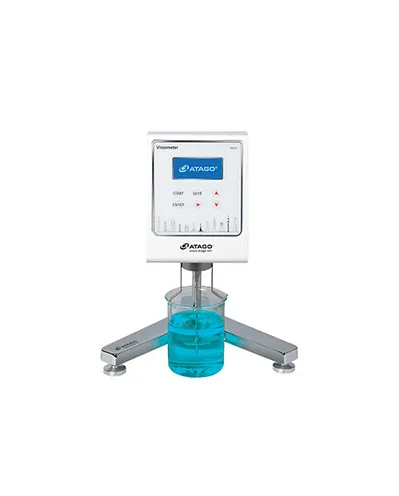

Viscometer Base - Atago

Category :
Viscometer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

Viscometer is a tool used to measure the viscosity or viscosity of a solution. Most viscometer measures the velocity of a fluid flowing through the pipe glass (glass capillary), when the liquid was flowing fast then it is a low viscosity fluid (eg liquid), and when the liquid flow is slow then said high viscosity (eg honey). Viscosity can be measured by measuring the flow rate of fluid through a cylindrical tube. This is one of the easiest ways and can be used for both liquids and gases.
Atago Viscometer Base is Low budget and easy to use.

Measurement Range : L = 20 - 2,000,000 - R = 100 - 13,000,000 - H = 200 - 106,000,000
Speed (RPM) : 0.3 - 100 rpm - Number of speeds : 18
Display : Spindle Number, Speed(RPM), Viscosity, Max viscosity
Language : 10 Languages (English, French, German, Italian, Japanese, Portuguese, Spanish, Dutch, Polish, Catalan)
Measurement Accuracy : ±2%(Full Scale)
Accuracy Reproducibility : ±0.2%
Measurement Resolution : Less than 10,000 mPa·s: 0.1, more than 10,000 mPa·s: 1, Using low viscosity sample adaptor (optional): 0.01
Profile Memory : 9
Power Supply : AC 100 to 240V 50/60Hz
Parts Included : Main unit, Standard Spindles (L instruments: four spindles L1-L4, R and H instruments: 6 spindles R2-R7), Set of stands, Spindle guard, Spindle rack,
Carrying case, AC cable, Instruction Manual

More From Viscometer

Viscometer - Drawell SNB-RH Digital

The main measurement is solid at room temperature and liquid after high temperature heating, such as asphalt, hot melt adhesive, polyethylene wax and so on.
The measured data can be displayed directly on the LCD screen without secondary calculation. < VSoft Viscometer Data Collection,Analysis and Graphing Software > can also be selected to realize data acquisition and analysis and to compile the viscosity-temperature curve.
